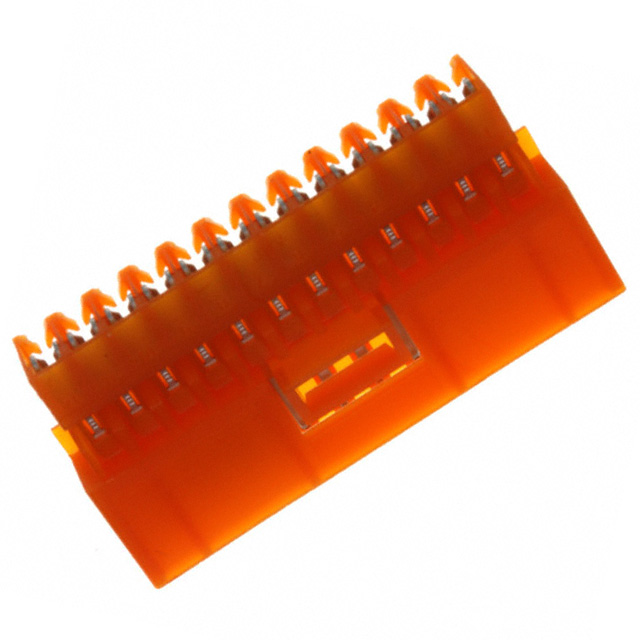

4-641435-2

Conn IDC Connector M 12POS 3.96mm IDT RA Cable Mount

12P MTA156 CONN ASSY ORNG

Product Highlights

MTA-156 Posted Wire-to-Wire Connectors

Number of Positions = 12

Mating Type = Plug

Connector Type = Closed End

Wire-to-Wire Application

得捷:
CONN PLUG 12POS IDC 18AWG TIN

立创商城:
4-641435-2

艾睿:
Reduce safety concerns with this idc connector 4-641435-2 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This M connector&s;s 12 contacts that are made out of copper alloy and plated with tin. Its pitch is 3.96 mm. This is a 1-row connector. It has a right angle body orientation. It has a maximum voltage rating of 600 VAC. It has a male type gender. This device has a maximum current rating of 7 A/contact. This product is 51.51 mm long, 12.37 mm tall and 25.65 mm deep. This connector has an operating temperature of -55 to 105 °C. 4-641435-2 is housed in orange nylon. It uses the idt termination method.

安富利:
Conn IDC Connector M 12 POS 3.96mm IDT RA Cable Mount

Verical:
Conn IDC Connector M 12 POS 3.96mm IDT RA Cable Mount Package

Electro Sonic:
12P MTA156 CONN ASSY ORNG
