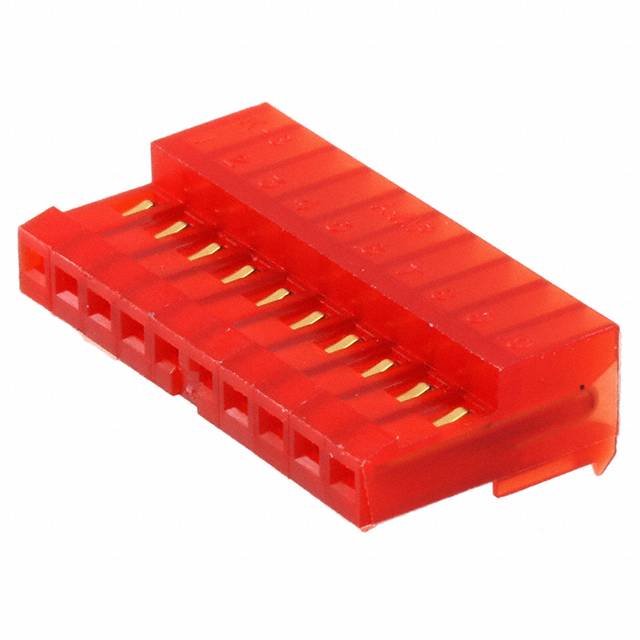

4-641190-0

集管和线壳 10P MTA100 CONN ASSY RED LF

10P MTA100 CONN ASSY RED LF

Product Highlights

MTA-100 Connectors

Number of Positions = 10

Mating Type = Receptacle

Connector Type = Closed End

Wire-to-Board Application

得捷:
CONN RCPT 10POS IDC 22AWG GOLD

贸泽:
集管和线壳 10P MTA100 CONN ASSY RED LF

艾睿:
Easily mount this idc connector 4-641190-0 header connector from TE Connectivity onto your PCB project to support a variety of physical configuration options. This F connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. It has a female type gender. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. 4-641190-0 is housed in red nylon. It uses the idt termination method. This product is 25.4 mm long, 6.99 mm tall and 13.21 mm deep. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece

Chip1Stop:
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece

Verical:
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Bag/Box

MASTER:
MTA .100 CONNECTOR ASSEMBLY 22 AWG, STANDARD

Electro Sonic:
10P MTA100 CONN ASSY RED LF
