4-643817-0

AMP FROM TE CONNECTIVITY  4-643817-0  绝缘压穿连接器IDC

10 位置矩形连 插座 IDC 锡 18AWG

得捷:
CONN RCPT 10POS IDC 18AWG TIN

e络盟:
绝缘压穿连接器IDC

艾睿:

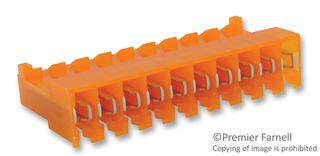

Look no further than the idc connector 4-643817-0 header connector from TE Connectivity, a great tool to use when board-to-board interconnects is required. This F connector&s;s 10 contacts that are made out of copper alloy and plated with tin over nickel. It has a maximum voltage rating of 600 VAC. This is a 1-row connector. It has a female type gender. It has a right angle body orientation. Its pitch is 3.96 mm. This device has a maximum current rating of 7 A/contact. It uses the idt termination method. This connector has an operating temperature of -55 to 105 °C. This product is 39.62 mm long, 9.02 mm tall and 18.42 mm deep. 4-643817-0 is housed in orange nylon.

Allied Electronics:
MTA Series 3.96mm Pitch 10 Way 1 Row Female Straight PCB Connector Housing

安富利:
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount

Verical:
Conn IDC Connector F 10Power POS 3.96mm IDT RA Cable Mount Bag/Box

Newark:
# AMP - TE CONNECTIVITY  4-643817-0  Wire-To-Board Connector, 3.96 mm, 10 Contacts, Receptacle, MTA-156 Series, IDC / IDT, 1 Rows

MASTER:
MTA 156 CONNECTOR ASSEMBLY, 18 AWG, STANDARD

Electro Sonic:
10P MTA156 CONN ASSY 18AWG LF
