4-640428-6

Conn IDC Connector F 16POS 3.96mm IDT RA Cable Mount Box

16 位置矩形连 插座 连接器 IDC 锡 22 AWG

得捷:
CONN RCPT 16POS IDC 22AWG TIN

艾睿:

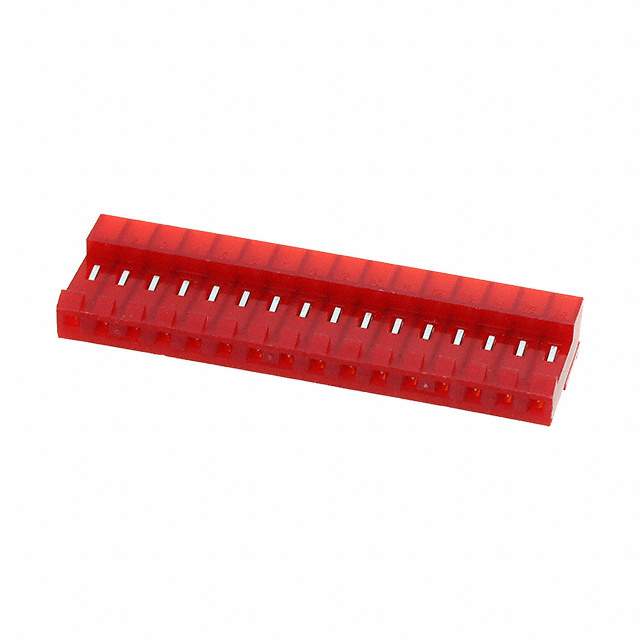

As an added safety precaution, the idc connector 4-640428-6 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This F connector&s;s 16 contacts that are made out of copper alloy and plated with tin over nickel. It has a right angle body orientation. It has a female type gender. It has a maximum voltage rating of 600 VAC. This is a 1-row connector. Its pitch is 3.96 mm. This device has a maximum current rating of 7 A/contact. This connector has an operating temperature of -55 to 105 °C. It uses the idt termination method. 4-640428-6 is housed in red nylon. This product is 63.4 mm long, 9.02 mm tall and 18.42 mm deep.

Verical:
Conn IDC Connector RCP 18 POS 3.96mm IDT ST Top Entry Cable Mount Box/Carton

Newark:
# AMP - TE CONNECTIVITY  4-640428-6  16P MTA156 CONN ASSY 22AWG RED New

MASTER:
MTA 156 CUSTOMER ASSEMBLY, 22 AWG STANDARD

Electro Sonic:
16P MTA156 CONN ASSY 22AWG RED
