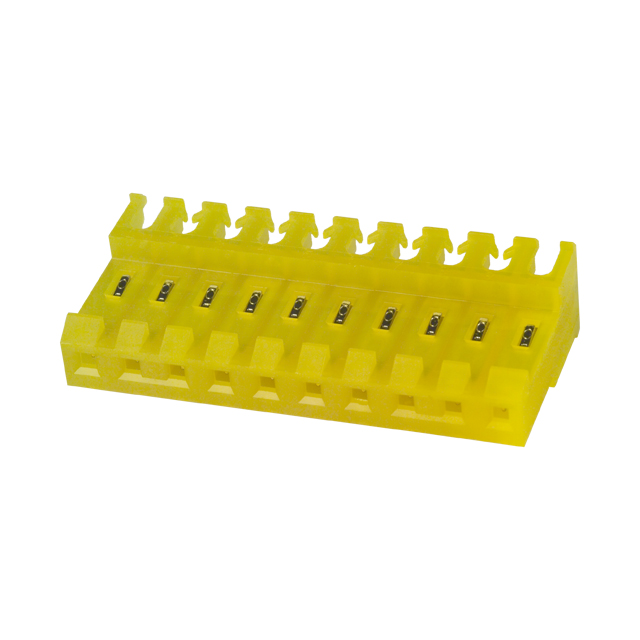

Conn IDC Connector F 10POS 3.96mm IDT RA Cable Mount Box/Carton
10P MTA156 CONN ASSY 20AWG LF
Product Highlights
MTA-156 Connectors
Number of Positions = 10
Mating Type = Receptacle
Connector Type = Feed Thru
Wire-to-Board Application
得捷:
CONN RCPT 10POS IDC 20AWG TIN
贸泽:
Headers & Wire Housings 10P ASSY 20AWG
Verical:
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount Box/Carton
MASTER:
MTA-156 CONNECTOR ASSEMBLY, 20 AWG, STANDARD
Online Components:
10P MTA156 CONN ASSY 20AWG LF
Electro Sonic:
10P MTA156 CONN ASSY 20AWG LF
触点数 10
极性 Female
线规 20 AWG
触点电镀 Tin
额定电压AC 600 V
额定电流 7 A
排数 1
易燃性等级 UL 94 V-2
针脚数 10
带凸肩 No
额定电流Max 7A/触头
额定电压Max 600 VAC
额定电压 600 VAC
接触电阻Max 3 mΩ
引脚间距 3.96 mm
长度 39.6 mm
宽度 18.4 mm
高度 9.78 mm
引脚间距 3.96 mm
外壳颜色 Yellow
颜色 Yellow
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
