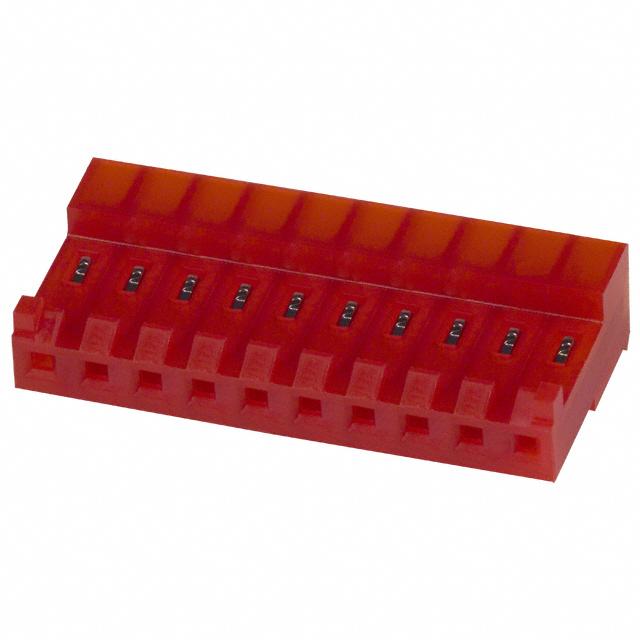

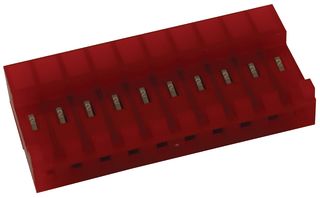

AMP FROM TE CONNECTIVITY 4-643819-0 连接器, IDC
10 Position Rectangular Receptacle Connector IDC Tin 22 AWG
得捷:
CONN RCPT 10POS IDC 22AWG TIN
贸泽:
集管和线壳 REC 10P C/E RAMP 22 AWG
e络盟:
连接器, IDC
艾睿:
Reduce safety concerns with this idc connector 4-643819-0 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This F connector&s;s 10 contacts that are made out of copper alloy and plated with tin over nickel. It has a maximum voltage rating of 600 VAC. It has a right angle body orientation. Its pitch is 3.96 mm. This is a 1-row connector. It has a female type gender. This device has a maximum current rating of 7 A/contact. This product is 39.62 mm long, 9.02 mm tall and 18.42 mm deep. It uses the idt termination method. 4-643819-0 is housed in red nylon. This connector has an operating temperature of -55 to 105 °C.
Verical:
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount Bag
Newark:
# AMP - TE CONNECTIVITY 4-643819-0 Wire-To-Board Connector, 3.96 mm, 10 Contacts, Receptacle, MTA-156 Series, IDC / IDT, 1 Rows
MASTER:
MTA 156 CONNECTOR ASSEMBLY, 22 AWG, STANDARD
Electro Sonic:
10P MTA156 CONN ASSY 22AWG RED
触点数 10
极性 Female
线规 22 AWG
触点电镀 Tin
额定电压AC 600 V
额定电流 7.00 A
绝缘电阻 5000 MΩ
排数 1
易燃性等级 UL 94 V-2
针脚数 10
拔插次数 50
带凸肩 No
额定电流Max 7A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 600 VAC
接触电阻Max 3 mΩ
引脚间距 3.96 mm
长度 39.6 mm
宽度 18.4 mm
高度 9.02 mm
引脚间距 3.96 mm
外壳颜色 Red
颜色 Red
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
