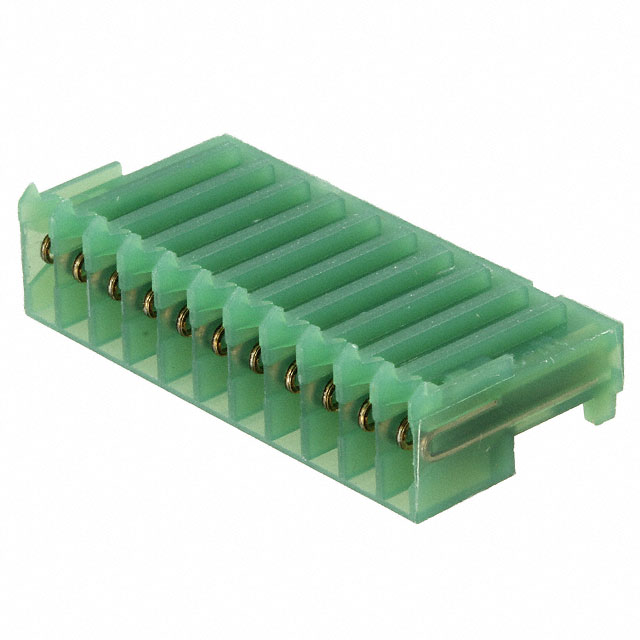

4-643816-1

Conn IDC Connector F 11POS 2.54mm IDT RA Cable Mount Bag

11 位置矩形连 插座 连接器 IDC 锡 28AWG

得捷:
CONN RCPT 11POS IDC 28AWG TIN

艾睿:
This idc connector 4-643816-1 header connector from TE Connectivity is used for jumper posts to support physical configuration options on printed circuit boards. This F connector&s;s 11 contacts that are made out of copper alloy and plated with tin over nickel. It has a female type gender. This is a 1-row connector. It has a right angle body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 5 A/contact. 4-643816-1 is housed in green nylon. This connector has an operating temperature of -55 to 105 °C. This product is 27.94 mm long, 6.99 mm tall and 13.21 mm deep. It uses the idt termination method.

Verical:
Conn IDC Connector F 11 POS 2.54mm IDT RA Cable Mount Bag/Box

Newark:
# AMP - TE CONNECTIVITY  4-643816-1  11P MTA100 CONN ASSY POL RIB New

MASTER:
MTA 100 CONNECTOR ASSEMBLY, 28 AWG, STANDARD

Online Components:
11P MTA100 CONN ASSY POL RIB

Electro Sonic:
11P MTA100 CONN ASSY POL RIB
