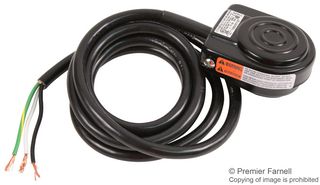

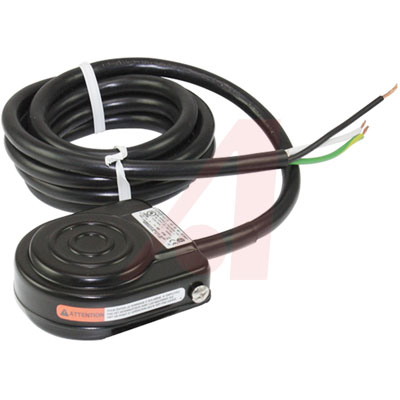

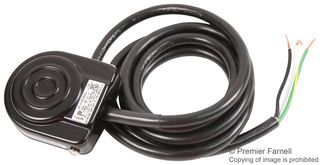

LINEMASTER 491-SC36 脚踏开关
**Compact Series**
EN 60529 Degree of Protection IP20
Versatile Compact Design
Splash resistant Available Momentary Only
**Materials of Construction:**
* Steel housing is painted black
* Metal mounting plate spot welded to base on MP
* Twin baseplate formed from cast iron aluminum
* The two pedal model is supplied with a divider bar between pedals to help prevent accidental operation of both pedals at one time
**Features and Benefits:**
* Non-skid base plate for secure placement
* Compact in size and light in weight
* Supplied with internal adjustment strain relief
* Built for long life
* 2 mounting holes for rigid mounting to floor or equipment
**Options:**
* Rectangular mounting bracket is available for Compact models on special order
* Bracket comes spot welded to switch base and has two clearance holes for mounting
* Heavy gauge steel guards is available
* Airval models available
** Specifications**
* Momentary Operation 491-DC3A
* Size: 27/8" × 21/2" × 11/8"
* Weight: 7 Oz.
