4-644456-0

AMP - TE CONNECTIVITY 4-644456-0 Board-To-Board Connector, 2.54mm, 10Contacts, Header, MTA-100 Series, Through Hole, 1Rows

10P MTA100 HDR ASSY NARROW

得捷:
CONN HEADER VERT 10POS 2.54MM

艾睿:

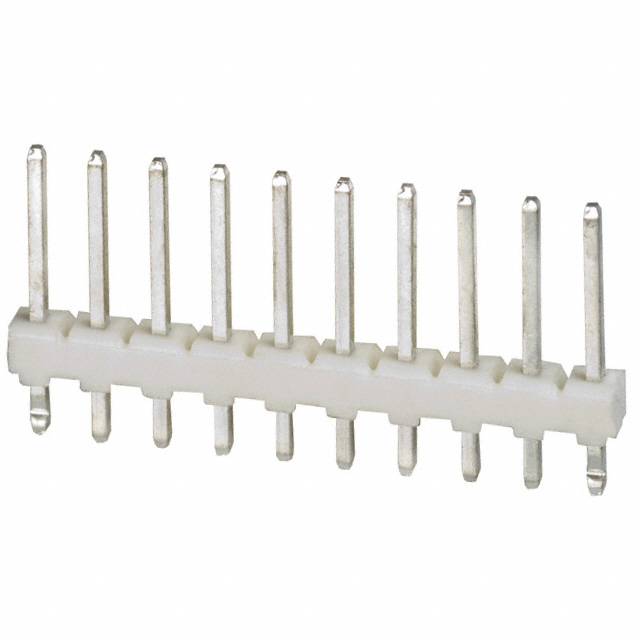

Protect your printed circuit boards from accidental damages with TE Connectivity&s;s unshrouded 4-644456-0 header connector. This HDR connector&s;s 10 contacts that are made out of copper alloy and plated with tin. This is a 1-row connector. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 5 A/contact. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. 4-644456-0 is housed in natural polyester. This product is 25.1 mm long, 10.03 mm tall and 2.33 mm deep.

Verical:
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag/Box

Newark:
# AMP - TE CONNECTIVITY  4-644456-0  Board-To-Board Connector, 2.54 mm, 10 Contacts, Header, MTA-100 Series, Through Hole, 1 Rows

Electro Sonic:
10P MTA100 HDR ASSY NARROW
