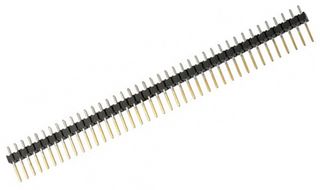

Conn Unshrouded Header HDR 40POS 2.54mm Solder ST Thru-Hole

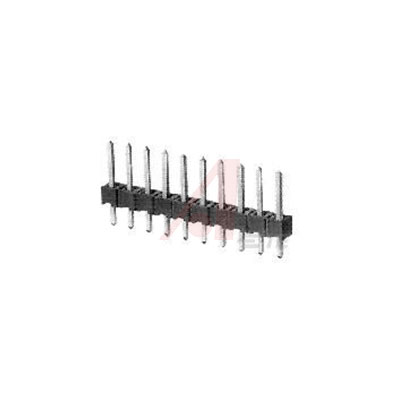

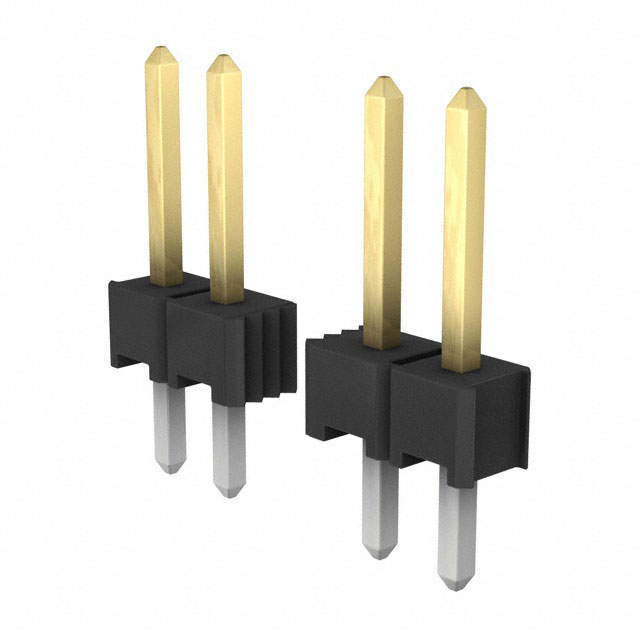

** AMPMODU Mod II 2.54mm Single Row Unshrouded Breakaway Headers**
AMPMODU Mod II unshrouded single row PCB mounting breakaway headers with a 2.54mm centerline, solder tails and black or greem thermoplastic 94V-0 rated housings. These AMPMODU Mod II unshrouded breakaway headers are available with a vertical or right angle mounting orientation and versions for surface mounting.
触点数 40
极性 Male
触点电镀 Gold, Tin Lead
额定电流 3 A
绝缘电阻 5000 MΩ
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 40
安装角度 180 °
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚间距 2.54 mm
长度 101 mm
宽度 2.34 mm
高度 8.13 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
