4-794632-4

Conn Power HDR 14POS 3mm Solder ST Thru-Hole 14 Terminal 1Port

针座 通孔 14 位置 0.118"（3.00mm）

得捷:
CONN HEADER VERT 14POS 3MM

艾睿:

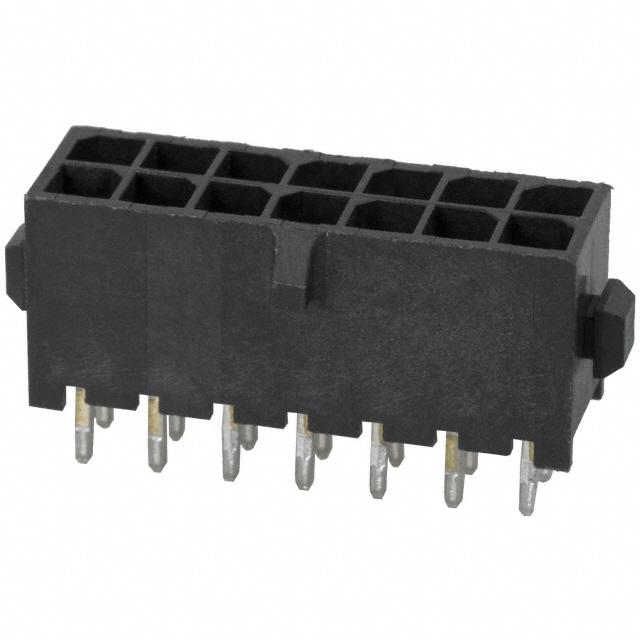

Do you need to connect a power supply to a circuit? Then this 4-794632-4 power connector from TE Connectivity is perfect for you! This HDR connector&s;s 14 contacts that are made out of brass and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. This connector has a single port. Its pitch is 3 mm. This device has a maximum current rating of 5 A/contact. 4-794632-4 is housed in nylon. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 25 mm long, 9.24 mm tall and 8.67 mm deep. Its 14 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C.

安富利:
Conn Power HDR 14 POS 3mm Solder ST Thru-Hole 14 Terminal 1 Port

Chip1Stop:
Conn Power HDR 14 POS 3mm Solder ST Thru-Hole 14 Terminal 1 Port

Verical:
Conn Power HDR 14 POS 3mm Solder ST Thru-Hole 14 Terminal 1 Port Tray

MASTER:
VERTICAL HEADER ASSEMBLY, THRU HOLE, 30 GOLD, DUAL ROW, MICRO MATE-N-LOK

Powell:
3mm Centerline, 250V, 5 A max.

Online Components:
14P MICRO MNL ASSY,VRT,HDR,LF

Electro Sonic:
14P MICRO MNL ASSY,VRT,HDR,LF
