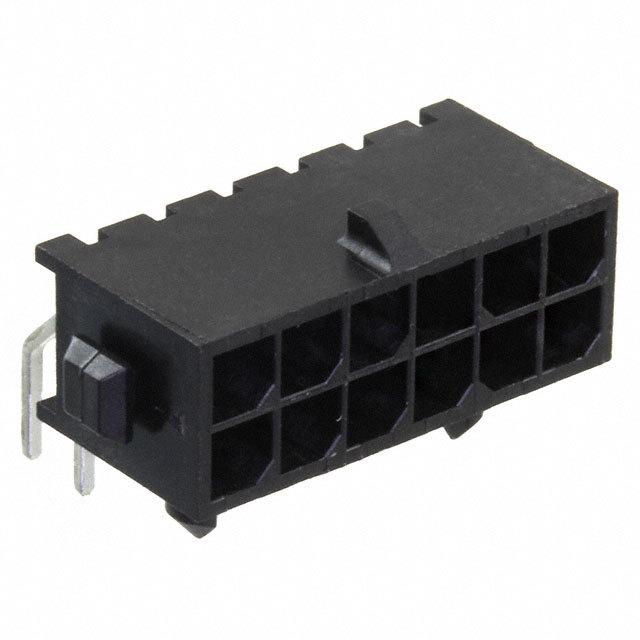

4-794619-2

Conn Power HDR 12POS 3mm Solder RA Thru-Hole 12 Terminal 1Port

12P MICRO MNL ASSY,R/A,HDR LF

得捷:
CONN HEADER R/A 12POS 3MM

艾睿:
The 4-794619-2 power connector from TE Connectivity is perfect for powering your circuit because it comes with the least amount of losses. This HDR connector&s;s 12 contacts that are made out of brass and plated with gold over nickel. This connector has a single port. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. Its pitch is 3 mm. It has a header type gender. 4-794619-2 is housed in nylon. This device has a maximum current rating of 5 A/contact. The item will be shipped in tray orientation. This product is 22 mm long, 8.67 mm tall and 11.92 mm deep. Its 12 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C.

安富利:
Conn Power HDR 12 POS 3mm Solder RA Thru-Hole 12 Terminal 1 Port

Chip1Stop:
Conn Power HDR 12 POS 3mm Solder RA Thru-Hole 12 Terminal 1 Port

Verical:
Conn Power HDR 12 POS 3mm Solder RA Thru-Hole 12 Terminal 1 Port Box/Tray

Powell:
3mm Centerline, 250V, 5 A max.
