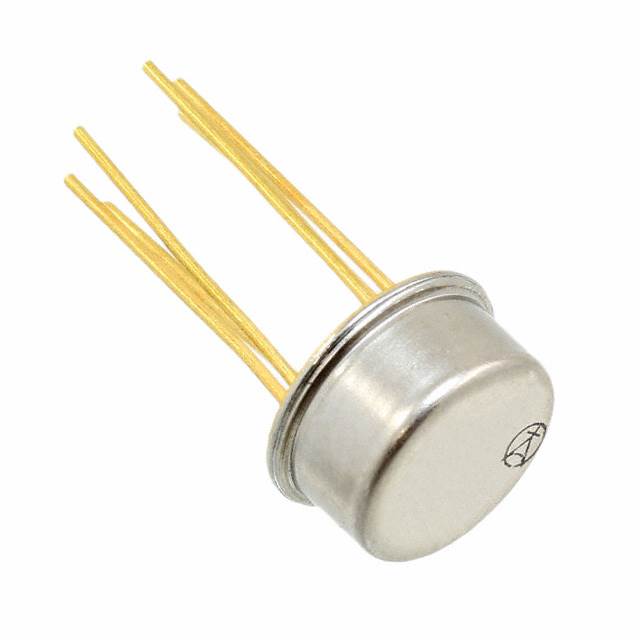

Optocoupler DC-IN 1CH Transistor With Base DC-OUT 6Pin TO-78
Description:
Each isolator in this series consists of an infraredemitting diode and a NPN silicon phototransistor, which are mounted in a hermetically sealed TO-78 package. Devices are designed for military and/or harsh environments. The suffix letter “A” denotes the collector is electrically isolated from the case.
The 4N22, 4N22A, , 4N23A,4N24, and 4N24A TX, TXVdevices are processed to MIL-PRF-19500/486.
The 4N47, 4N47A, 4N48, 4N48A, 4N49, and 4N49A TX, TXV devices are processed to MIL-PRF-19500/548.
Features:
• TO-78 hermetically sealed package
• High current transfer ratio
• 1 kV electrical isolation
• Base contact provided for conventional transistor biasing
• TX and TXV devices processed to MIL-PRF-19500
• Patent No. 4124860
上升/下降时间 15 µs
通道数 1
正向电压 1.3V Max
耗散功率 300 mW
隔离电压 1000 VDC
正向电流 40 mA
输出电压Max 35 V
正向电压Max 1.3 V
正向电流Max 40 mA
下降时间Max 15 µs
上升时间Max 15 µs
工作温度Max 125 ℃
工作温度Min -65 ℃
耗散功率Max 300 mW
安装方式 Through Hole
引脚数 6
封装 TO-78-6
封装 TO-78-6
工作温度 -65℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
