4600Z-881

EBM PAPST  4600Z-881  轴流风扇, 紧凑, 护套, 4000Z系列, 115 VAC, 119 mm, 38 mm, 105.9 cu.ft/min, 2.97 m³/min

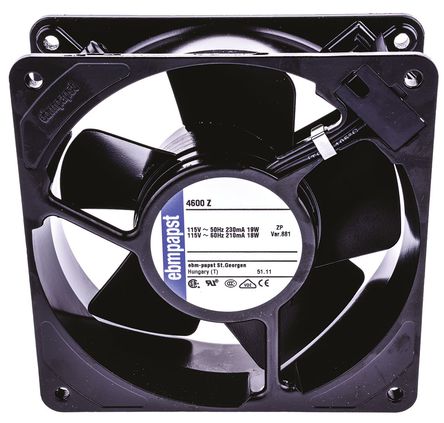

The is a 115VAC Axial Fan with Sintec sleeve bearing and terminal power connection. Die-cast aluminium housing and sheet steel coated in black impeller. Right direction of rotation looking at rotor, air exhaust via struts, reinforced flange corners with through-holes direction of air flow with 2 flat connectors of 2.8 x 0.5mm. Housing with grounding lug for M4 x 8, electrical terminals on single strands that are 310mm in length. The AC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

.

3100RPM Speed rating

.

18W Rated power

.

-10 to 60°C Maximum ambient temperature range

.

Insulation class-E

.

Protected from overload using impedance protection
