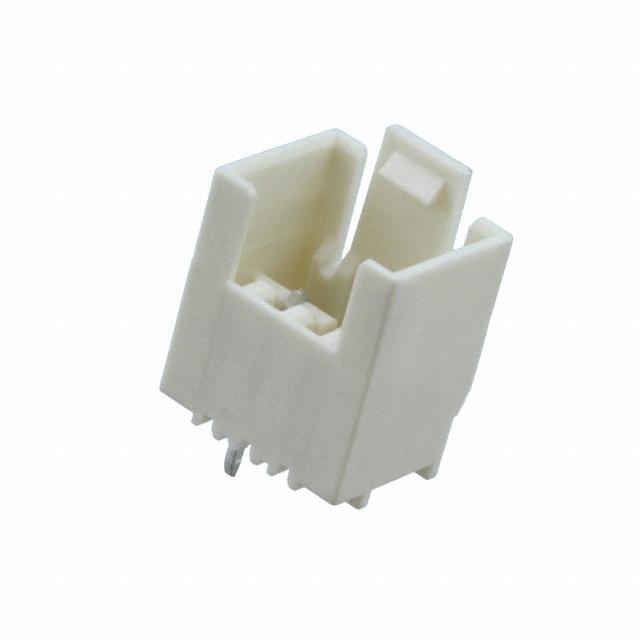

4-1971921-3

Conn Positive Lock Connector HDR 3POS 2.5mm Solder ST Thru-Hole Tube

针座连接器 通孔 3 位置 0.098"（2.50mm）

得捷:
CONN HEADER VERT 3POS 2.5MM

艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s positive lock connector 4-1971921-3 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 3 contacts that are made out of copper alloy and plated with tin. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 250 V. This is a 1-row connector. Its pitch is 2.5 mm. This device has a maximum current rating of 2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 4-1971921-3 is housed in natural nylon 6/6. It uses the solder termination method. This product is 11.7 mm long, 15.5 mm tall and 9.2 mm deep.

Verical:
Conn Shrouded Header HDR 3Power POS 5mm Solder ST Top Entry Thru-Hole Box/Tube

Newark:
# AMP - TE CONNECTIVITY  4-1971921-3  2/3P,RAST 2.5 TAB HEADER,EX- LOCKING,THV New

MASTER:
Conn Shrouded Header HDR 3Power POS 5mm Solder ST Top Entry Thru-Hole Box/Tube

Online Components:
2/3P,RAST 2.5 Tab Header,Ex- Locking,THV

Electro Sonic:
2/3P,RAST 2.5 Tab Header,Ex- Locking,THV
