4850N

EBM PAPST  4850N  轴流风扇, 紧凑, 护套, 4000N系列, 230 VAC, 119 mm, 38 mm, 58.86 cu.ft/min, 100 m³/h

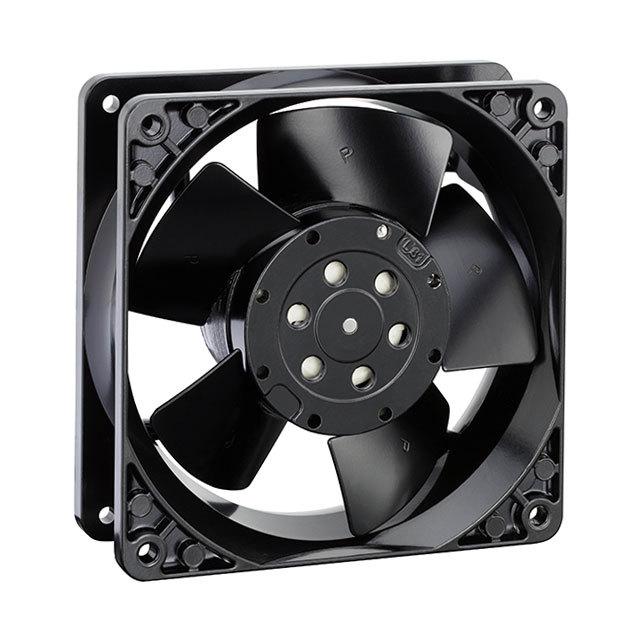

The from EBM Past is an AC axial compact fan. This is a AC voltage fan with external rotor shaded pole motor protected from overload by impedance protection. Fan housing and fan impeller made of metal. The electrical connection is via 2 flat plugs 3mm x 0.5mm.

.

Nominal voltage is 230VAC

.

Power input is 10W

.

Ambient temperature range from -10°C to 70°C

.

Air flow is 100m3/h

.

Speed is 1800min-1

.

Sound pressure level is 32dBA

.

Sintec sleeve bearing system

.

Dimension is 119mm x 119mm x 38mm

.

Mass is 0.550Kg

.

Air flow is inlet over bars
