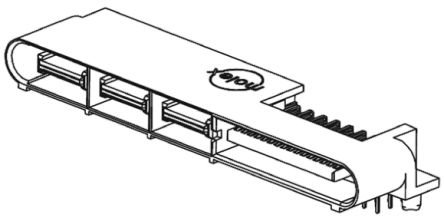

1.27毫米（ .050 “ ） ， 12.00毫米（ 0.472 ” ）间距，极端LPHPower ™接头，直角，6个电源触点， 24个信号触点，选择金（Au ）镀层，用于2.36毫米（ 0.093 “）厚PC板 1.27mm .050", 12.00mm .472" Pitch, EXTreme LPHPower™ Header, Right Angle, 6 Power Contacts, 24 Signal Contacts, Select Gold Au Plating, for 2.36mm .093" Thick PC Board
薄型混合印刷电路板管座
这些 EXTreme LPHPower 混合印刷电路板管座电源结合了混合电源和信号触点，适用于高电流板对板应用。这些印刷电路板管座电源连接器的薄型 7.50mm 设计可提高系统气流并提供每线性英寸 127.0A 的电流。这些薄型混合印刷电路板管座的每个外壳棚还具有两个隔离电源触点，单棚中具有电源和复位电路，可实现每个电源棚总共 60.0A 的电流。EXTreme LPHPower 混合印刷电路板管座可配接 45984 系列插座（请参见典型库存号 720-0317）和 46114 系列插座（请参见典型库存号 720-0443）
欧时:
### Low Profile Hybrid PCB HeaderThese EXTreme LPHPower hybrid PCB header power connectors combine mixed power and signal contacts for high current board to board applications. The low profile 7.50mm design of these PCB header power connectors improves system airflow and provides 127.0A per linear inch. These low profile hybrid PCB headers also have two isolated power contacts per housing bay allowing power and return circuits in a single bay for a total of 60.0A per power bay. The EXTreme LPHPower hybrid PCB headers mate with 45984 series receptacles, see stock number 720-0317 typically and the 46114 series receptacles, see stock number 720-0443 typically### Molex EXTreme LPHpower™ Range### Molex EXTreme LPHpower Range
立创商城:
45985-6442
贸泽:
重负荷电源连接器 6 PWR 24 SIG RA HDR LPH POWER W/GDE PCKT
艾睿:
Conn LPH HDR 6Power/24Signal POS 2.5mm/2.54mm Solder RA Thru-Hole 54 Terminal 1 Port EXTreme LPHPower™ Frame
Allied Electronics:
LPH Plug RtAn 06 Pwr 24 Sig Peg+Guide
Newark:
# MOLEX 45985-6442 Connector, 45985 Series, Backplane, 30 Contacts, Header, 1.27 mm, Through Hole
