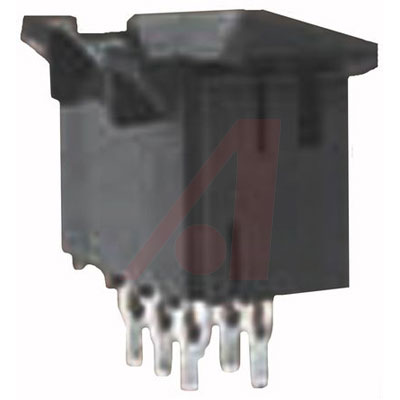

43879-0022图片1
43879-0022图片2
43879-0022图片3
43879-0022图片4
43879-0022图片5
43879-0022图片6
43879-0022图片7
43879-0022图片8
43879-0022概述

MOLEX  43879-0022  线至板连接器, Mini-Fit CPI 43879系列, 4 触点, 针座, 4.2 mm, 压配合, 2 排

Mini-Fit® Blind Mate Interface BMI Connectors

Mini-Fit® Blind Mate Interface BMI connectors support up to 13.0A for high-current and high-density applications in wire-to-wire, wire-to-board and board-to-board applications. Mini-Fit® BMI connectors allow misalignment and provide "float" of up to 2.54mm between mating surfaces for easy blind-mate connections. In addition, the connectors utilize both the Mini-Fit Jr. and high current Mini-Fit Plus female and male crimp terminals to support up to 9.0A or 13.0A.

Mini-Fit BMI panel-mount receptacles are designed to float or self-align. The headers and plugs feature flanges that help to "gather" the mating receptacle.

Many options are offered including: through-hole, press-fit or SMC headers; tin or gold terminals; and multiple resin options to support the changing needs of manufacturing.

43879-0022中文资料参数规格
技术参数

触点数 4

极性 Male

触点电镀 Tin

额定电压DC 600 V

额定电流 7.00 A

排数 2

灼热丝测试标准 Non-Compliant

无卤素状态 Not Low Halogen

方向 Vertical

电路数 4

易燃性等级 UL 94 V-0

针脚数 4

拔插次数 30

额定电流Max 8A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 600 V

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

引脚间距 4.20 mm

外形尺寸

长度 18.81 mm

宽度 15 mm

高度 14.9 mm

引脚间距 4.20 mm

物理参数

颜色 Black

触点材质 Phosphor Bronze

工作温度 -40℃ ~ 105℃

外壳材质 Thermoplastic

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

海关信息

ECCN代码 EAR99

数据手册

在线购买43879-0022
型号: 43879-0022
制造商: Molex 莫仕
描述:MOLEX  43879-0022  线至板连接器, Mini-Fit CPI 43879系列, 4 触点, 针座, 4.2 mm, 压配合, 2 排
