48025-0002

MOLEX  48025-0002  模块连接器, Cat5, RJ45, 插座, 8 触点, 8 路, 1 端口

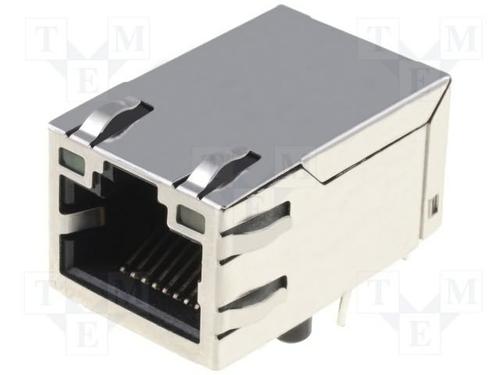

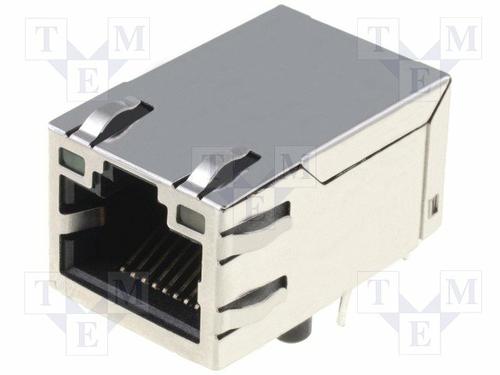

The is a 8P8C 1-port right angle Cat5 shielded Modular Jack with integrated magnetic and LED. It incorporates wire-wound components magnetics in standard RJ45 jacks. These integrated magnetics, resistors and/or capacitors filter common-mode noise to provide signal integrity, protect PHY chips, provide DC isolation and offer low-mode conversion. It supports fast Ethernet 10/100 and Gigabit Ethernet applications.

.

Through hole signal and body tails PCB attachment

.

1.5A Current per contact maximum

.

150VAC RMS Voltage maximum

.

UL94V-0 Flammability

.

750 Mating cycles durability
