4-640429-7

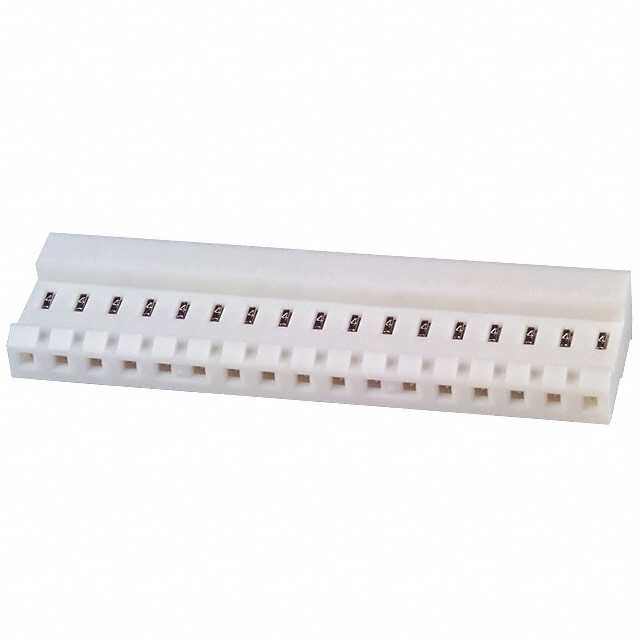

Conn IDC Connector F 17POS 3.96mm IDT RA Cable Mount

17 位置矩形连 插座 IDC 锡 24 AWG

得捷:
CONN RCPT 17POS IDC 24AWG TIN

贸泽:
Headers & Wire Housings 17 POS RECPT 24 AWG

艾睿:
Mount this idc connector 4-640429-7 header connector from TE Connectivity on a jumper post on your PCB to support physical configuration options. This F connector&s;s 17 contacts that are made out of copper alloy and plated with tin over nickel. This is a 1-row connector. It has a female type gender. Its pitch is 3.96 mm. It has a maximum voltage rating of 600 VAC. It has a right angle body orientation. This device has a maximum current rating of 7 A/contact. 4-640429-7 is housed in white nylon. This product is 67.36 mm long, 9.02 mm tall and 18.42 mm deep. This connector has an operating temperature of -55 to 105 °C. It uses the idt termination method.

Verical:
Conn IDC Connector F 17Power POS 3.96mm IDT RA Cable Mount Bag/Box

Newark:
# AMP - TE CONNECTIVITY  4-640429-7  17P MTA156 CONN ASSY 24AWG WHT New

MASTER:
MTA 156 CONNECTOR ASSEMBLY, 24 AWG, STANDARD

Electro Sonic:
17P MTA156 CONN ASSY 24AWG WHT
