4-640623-1

Conn IDC Connector F 11POS 2.54mm IDT RA Cable Mount Bag/Box

11 位置矩形连 插座 IDC 锡 28AWG

得捷:
CONN RCPT 11POS IDC 28AWG TIN

贸泽:
Headers & Wire Housings 11P ASSY GRN

艾睿:

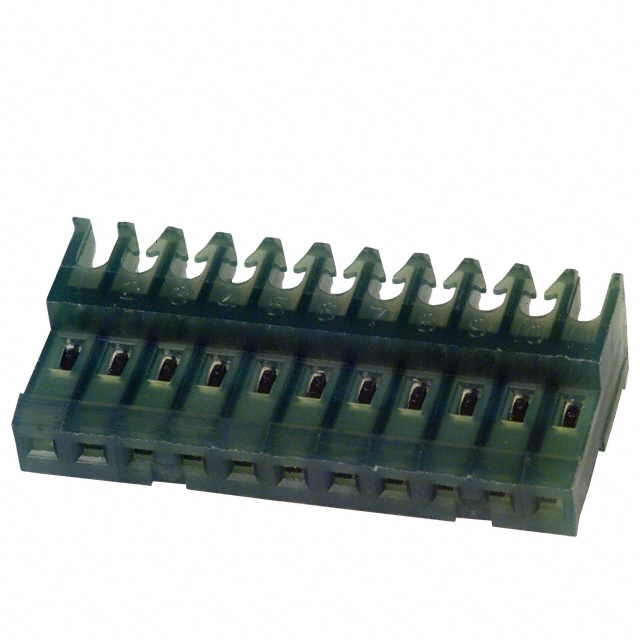

Mount this idc connector 4-640623-1 header connector from TE Connectivity on a jumper post on your PCB to support physical configuration options. This F connector&s;s 11 contacts that are made out of copper alloy and plated with tin over nickel. It has a maximum voltage rating of 250 VAC. It has a female type gender. This is a 1-row connector. It has a right angle body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 5 A/contact. It uses the idt termination method. This product is 27.94 mm long, 7.75 mm tall and 13.21 mm deep. This connector has an operating temperature of -55 to 105 °C. 4-640623-1 is housed in green nylon.

Verical:
Conn IDC Connector F 11 POS 2.54mm IDT RA Cable Mount Loose Piece

Newark:
# AMP - TE CONNECTIVITY  4-640623-1  11P MTA100 CONN ASSY GRN LF New

MASTER:
MTA-100 CONNECTOR ASSEMBLY, 28 AWG, STANDARD

Electro Sonic:
11P MTA100 CONN ASSY GRN LF
