4-794680-4

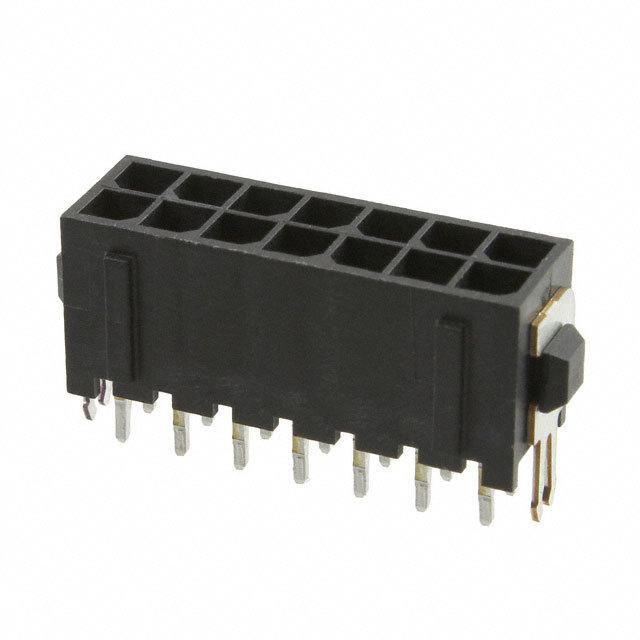

AMP FROM TE CONNECTIVITY  4-794680-4  线至板连接器, Micro MATE-N-LOK系列, 14 触点, 针座, 3 mm, 通孔安装, 2 排

The Micro MATE-N-LOK series low profile micro MATE-N-LOK Connector has a vertical height of less than 4.7mm - about 45% lower than other members of the product family. These soft-shell connectors include right-angle surface-mount headers and mating cable connectors. The line uses standard micro MATE-N-LOK contacts, with 24 to 20 and 30 to 26AWG wire ranges. The connector features positive latching to prevent unmating. The 94V-0-rated nylon housing is available in black or natural colours. Contacts are phosphor bronze with a choice of tin or gold plating. The connectors are rated up to 5A and 250V. This low-profile connector joins the proven micro MATE-N-LOK line of soft-shell connectors widely used in appliance, industrial machinery and home equipment. The low-profile version was created to meet the specific demands of the lighting industry, but applications are found in other industries, as well.

.

Black and natural colours available

.

Polarized housings help prevent connector mismating

.

Positive latching to prevent unmating

.

Right angle surface mount headers with surface mount hold-downs

.

Utilizes standard Micro MATE-N-LOK contacts

.

2, 3 and 4 Positions available

.

<4.7mm in Vertical height required
