41560概述

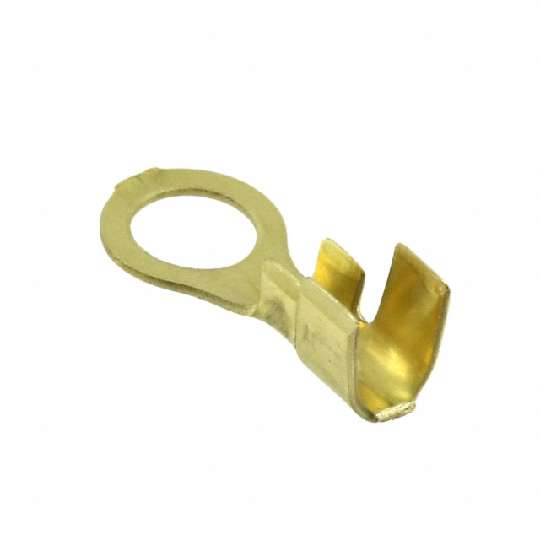

18-14 AWG 直 无绝缘 开放桶 环形舌片

18-14 AWG Straight Non-Insulated Open Barrel Ring Tongue Terminal


得捷:
CONN RING OVAL 14-18AWG #10


艾睿:
The best way to connect two terminal blocks in your application is by using the ring tongue terminal 41560 wire terminal from TE Connectivity. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. Its wire is 14-18 AWG. This product is 16.26 mm long and 7.52 mm.


Verical:
Ring Tongue Terminal 14-18AWG Brass 16.26mm Reel/Strip Automotive


MASTER:
RING TONGUE


Powell:
Ring and Spade Tongue Terminals


AMEYA360:
CONN RING 14-18 AWG #10 STRIP


Electro Sonic:
RING .190 4.82 MM 18-14 AWG BR


41560中文资料参数规格
技术参数

线规 14AWG ~ 18AWG

额定电流 1.18 A

方向 Straight

端接类型 Ring Lug, Ring

外形尺寸

长度 16.26 mm

厚度 0.51 mm

物理参数

触点材质 Brass

材质 Brass

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买41560
型号: 41560
描述:18-14 AWG 直 无绝缘 开放桶 环形舌片
