4543-2

POMONA  4543-2  双引脚插座, 1.5KV, 5A, 红色

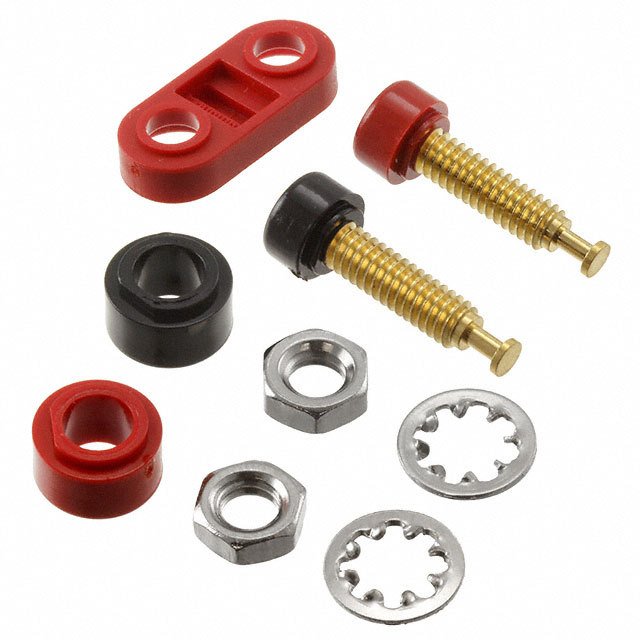

The from Pomona is an insulated double pin tip jack. This jack has miniature insulation of polycarbonate thermoplastic moulded to pin tip in red colour, mounting plate insulation of polycarbonate thermoplastic.

.

Panel insulator of polycarbonate thermoplastic and matches colour of pin tip jack insulator

.

Lockwasher #8, steel, nickel plated internal tooth

.

Nickel plated brass finish hex nut #8

.

Pin tip jack body of gold plated brass

.

One piece beryllium copper, berylco 25 spring

.

Gold flash over electroless nickel

.

Maximum operating temperature of +115°C +239°F

.

Operating voltage of 1500VDC

.

5Amperes current

.

Accepts 0.080dia pin and maximum panel thickness of 0.188
