POMONA 4934-2 香蕉插座, 带护套, 15A, 红色

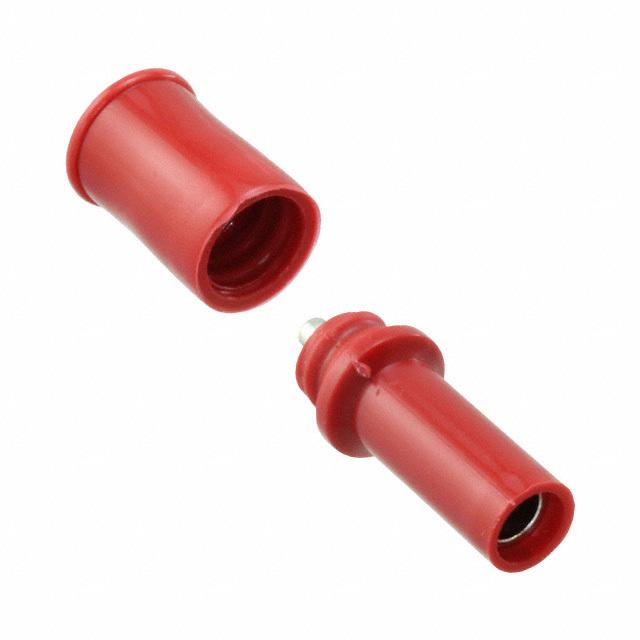

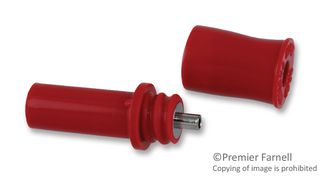

The 4934 series In-line Sheathed Banana Jack fits into Pomona models 4933 and 4986 banana plugs. It is made of nickel-plated brass body with nylon insulator and threaded handle. Heavy-duty plastic body withstands cracking if accidentally dropped. Threaded two piece design allows wires to be soldered or crimped to the banana jack body.
得捷:
CONN BANANA JACK RED
贸泽:
测试插头和测试插座 SHEATHED BANANA JA
e络盟:
香蕉插座, 带护套, 15A, 红色
艾睿:
Using the banana jack 4934-2 test terminal block from Pomona is easy when testing components of your circuit. This F connector&s;s a single contact that is made out of brass and plated with nickel. It has a female type gender. This connector has a single port. It has a straight body orientation. This device has a maximum current rating of 15 A. This product is 25.91 mm long with a diameter of 10.92 mm. This test terminal block has a maximum operating temperature of 80 °C. 4934-2 is housed in red nylon. It uses the crimp|solder termination method. Its wire is 18-22 AWG.
Allied Electronics:
SHEATHED JACK 18, 20, 22AWG RED
Verical:
Conn Banana Jack F 1 POS Crimp/Solder ST Cable Mount 1 Port
Newark:
# POMONA 4934-2 BANANA JACK, 15A, CRIMP/SOLDER, RED
MASTER:
Conn Banana Jack F 1 POS Crimp/Solder ST Cable Mount 1 Port
Electro Sonic:
Conn Banana Jack F 1 POS Crimp/Solder ST Cable Mount 1 Port
触点数 1
极性 Male
线规 18AWG ~ 22AWG
触点电镀 Nickel
额定电压DC 1.20 kV
额定电流 15 A
额定电流Max 15 A
工作温度Max 80 ℃
额定电压 1.2 kV
安装方式 Solder
长度 1 in
外壳颜色 Red
颜色 Red
触点材质 Brass
绝缘材质 Nylon
工作温度 80 ℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
4934-2 Pomona Electronics | 当前型号 | 当前型号 |
4934-0 Pomona Electronics | 完全替代 | 4934-2和4934-0的区别 |
