4-84534-0

AMP FROM TE CONNECTIVITY  4-84534-0  连接器, FFC/ FPC板, 40 触点, 插座, 1.25 mm, 通孔安装

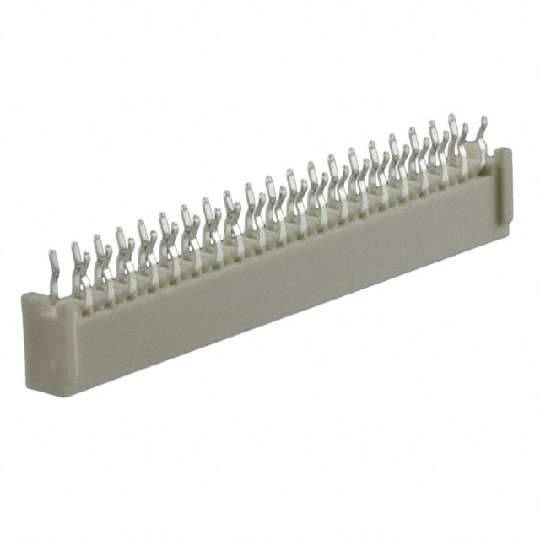

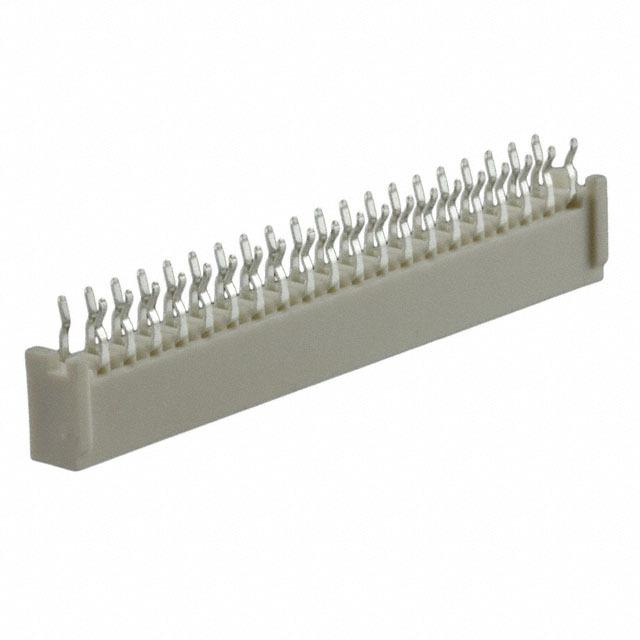

Design your electronic device with FFC technology by implementing this ffc connector flexible flat cable from . Its pitch is 1.25 mm. This socket type connector"s 40 contacts that are made out of phosphor bronze and plated with bright tin. It has a maximum voltage rating of 50 VAC. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 1 A/contact. The component will be shipped in tray format. It uses the solder termination method. This product is 53.75 mm long, 7.8 mm tall and 4.8 mm deep. 4-84534-0 is housed in white polybutylene terephthalate. This flexible flat cable has an operating temperature of -20 to 80 °C.
