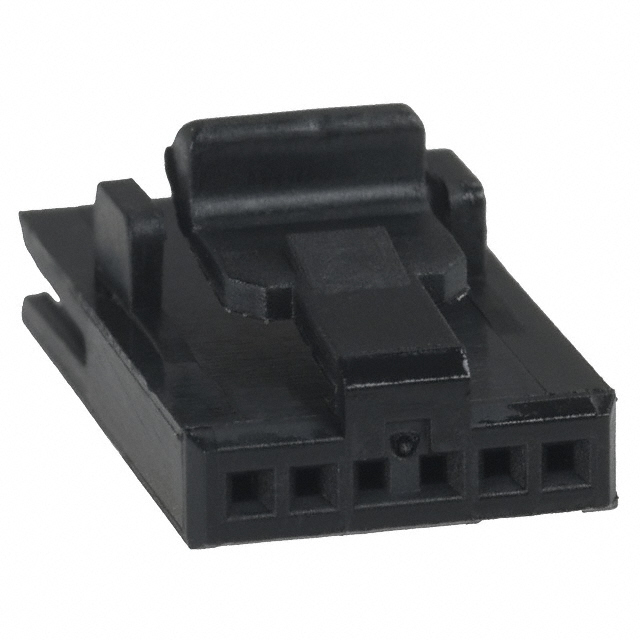

AMP FROM TE CONNECTIVITY 487545-3 连接器, FFC/ FPC板, AMPMODU系列, 6 触点, 插座, 1.27 mm
外壳 FFC 母触点体座 销锁 6位置 0.050"(1.27mm)
欧时:
006 HOUSING FFC RCPT 050CL SR
得捷:
CONN FFC RCPT HSG 6POS 1.27MM
贸泽:
FFC & FPC Connectors 06 HSG RCPT 050CL SR
e络盟:
连接器, FFC/ FPC板, 1.27 mm, 6 触点, 插座, AMPMODU系列
艾睿:
Think of TE Connectivity&s;s 487545-3 discrete wire housing the next time you need a connection between two circuits but a direct linkage is not possible. This RCP connector has 6 RCP contacts. It has a receptacle type gender. It has a straight body orientation. This is a 1-row connector. Its pitch is 1.27 mm. 487545-3 is housed in black thermoplastic. This rectangle connector has an operating temperature of -55 to 105 °C. This product is 8.71 mm long, 6.22 mm tall and 14.85 mm deep.
Allied Electronics:
FFC Connectors; 006 HOUSING FFC RCPT 050CL SR
安富利:
Conn Housing RCP 6 POS 1.27mm Crimp ST
Verical:
Conn Housing RCP 6 POS 1.27mm Crimp ST Cable Mount Black Carton
Newark:
# AMP - TE CONNECTIVITY 487545-3 FFC / FPC Board Connector, 1.27 mm, 6 Contacts, Receptacle, AMPMODU Series
MASTER:
HOUSING, RECEPTACLE, .050 C/L
Powell:
.050 X .100 AMPMODU System 50
Online Components:
006 HOUSING FFC RCPT 050CL SR
GOPHER:
Flexible Film Connector 6 POSITION .050 CENTERLINE RECEPT HOUSING LATCHING NOT PRE-LOADED WITH CONTACTS
Electro Sonic:
006 HOUSING FFC RCPT 050CL SR
触点数 6
极性 Female
绝缘电阻 5000 MΩ
排数 1
易燃性等级 UL 94 V-0
针脚数 6
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 100 V
引脚间距 1.27 mm
长度 8.71 mm
宽度 6.99 mm
高度 14.85 mm
引脚间距 1.27 mm
外壳颜色 Black
颜色 Black
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8538906000
