40.31.9.006.0000

FINDER  40.31.9.006.0000  通用继电器, 40系列, 功率, SPDT, 6 VDC, 10 A

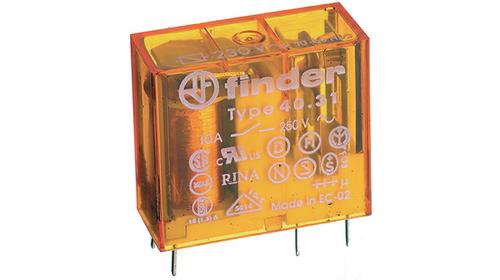

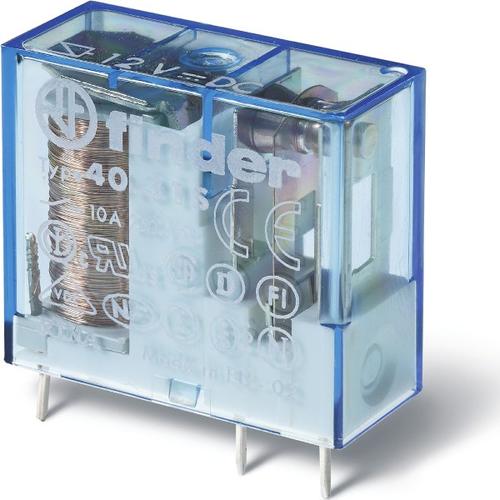

The is a 1-pole Miniature PCB/Plug-in Relay with DC coil, 40.31 series. 1CO SPDT contact configuration, coil EMC suppression. Timer accessories 86 series, 3.5mm pin length for PCB mount. AgNi, cadmium-free contact, 8mm creepage and clearance distances between coil and contacts. Meets EN 60335-1 glow wire requirements.

.

6kV 1.2/50µs Isolation, coil contacts

.

RT II Environmental protection rating

.

SPDT, SPST-NO, DPST contact configurations

.

Available in flux proof RT II standard and wash tight RT III version

.

UL, CSA and VDE standards approved

.

Switching capacity of 12A, 16A, 10A, 8A at 250VAC

.

Cadmium free contact materials

.

35mm rail mount via screw or screwless sockets

.

DC coils standard or sensitive & AC coils

.

Bistable single coil versions of 40.31/51/52/61 relays are also available
