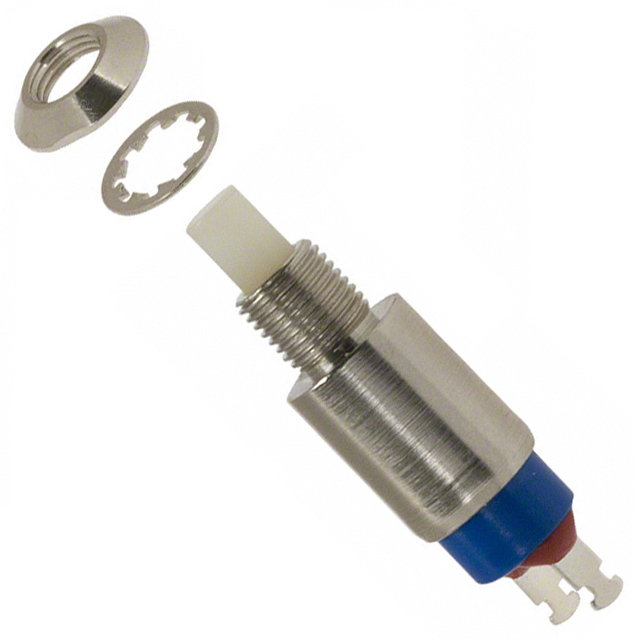

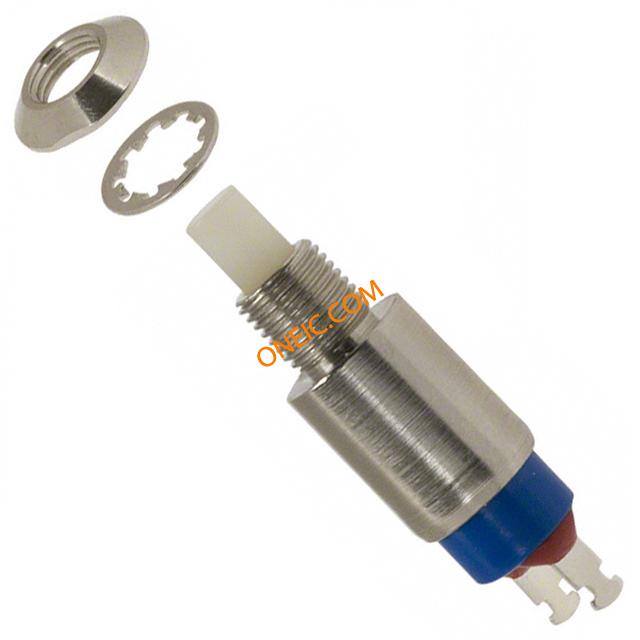

APEM 401ZQE 按钮开关
Single pole single throw normally open or normally closed pushbuttons with solder lug or pc terminals. Ratings up to 3 amps, UL available plus long life cycles.Features
* **Compact Size**
* **Dry Circuit Through Power Ratings**
* **Panel, Panel and PC and PC Mounting Models**
* **Operating Temperture: –30°C to +85°C**
Specification
* **Max. Current/Voltage Rating with Resistive Load:**
** — Gold Over Nickel Brass 0.4 VA - 20 V Max.**
** — Coin Silver Contacts: 1 A 125 VAC or 28 VDC, 0.5 A 250 VAC, 3 A 125 VAC or 28 VDC **
* **Electrical Life: **
** — 300 Series Q Coin Silver 1 A 125 VAC or 28 VDC: 250,000 Cycles**
** — 300 Series Q Coin Silver 3 A 125 VAC or 28 VDC: 10,000 Cycles**
** — 300 Series B Gold 0.4 VA Max. at 20 V: 250,000 Cycles**
** — 400 Series Q Coin Silver 1 A 125 VAC or 28 VDC: 250,000 Cycles**
** — 400 Series Q Coin Silver 3 A 125 VAC or 28 VDC: 10,000 Cycles**
** — 400 Series B Gold 0.4 VA Max. at 20 V: 250,000 Cycles
额定电压DC 28 V
额定电压AC 125 V
额定电流 1 A
方向 Vertical
触点类型 SPST
额定电流Max 3 A
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 125 VAC
安装方式 Solder Lug, Panel
封装 -
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
