49-59115

ITW SWITCHES  49-59115  按钮开关, SPST-常开, 关-开, 250 V, 50 V, 0.4 A

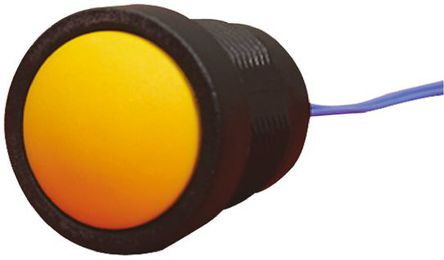

The 49-59 series switches from ITW are momentary action pushbutton switches. These switches fit a 16mm diameter panel cut out. The range consists of a fully sealed IP67 version with insulated flying leads 500mm length along with a panel sealed IP67 version which is terminated by a series 16 microswitch. The SPDT-DB contacts provide reliable switching for DC loads. The series 49-59 is available with a choice of round, round with status illumination flying leads only or square bezels and with 6 button colour variants. The body and button are made from PBT, hard wearing thermoplastic polyester that is suitable for surface printing or engraving.

.

LED status illumination versions

.

Screw or snap-in panel mount

.

Square and round bezels

.

Logic level and 10A versions available

.

Fully sealed IP67 versions with 500mm insulated leads

.

Wide temperature range up to 105°C

.

Flame retardant UL rated material

.

Gold contacts on microswitch versions

.

Operating force of 3N
