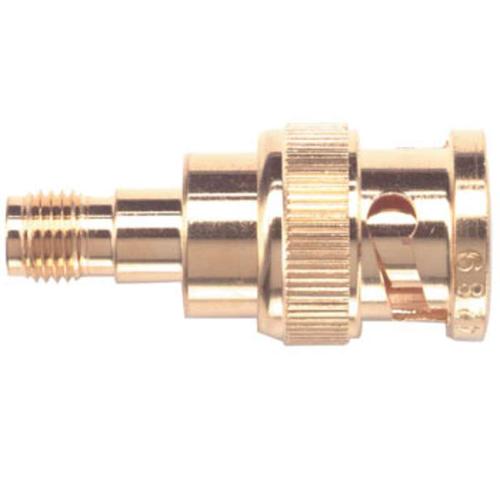

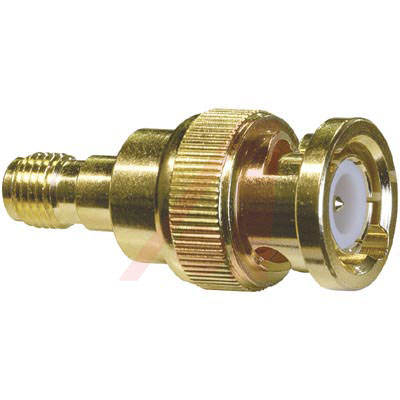

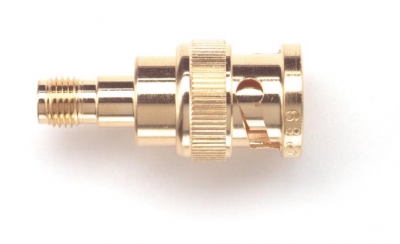

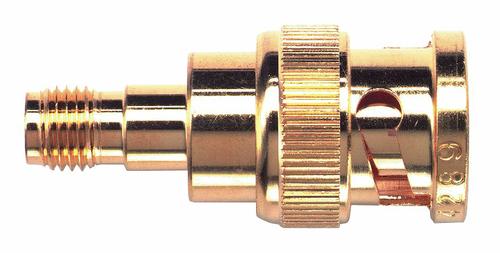

POMONA 4289 射频/同轴适配器, 同轴混合系列, 直型转接器, SMA, 插座, BNC, 插头
同轴(RF) - 适配器 BNC 插头,公引脚 至 SMA 插孔,母插口 50 欧姆
得捷:
CONN ADAPT BNC PLUG TO SMA JACK
贸泽:
射频适配器 - 系列之间 SMA F/BNC M
e络盟:
射频/同轴适配器, SMA, 插座, BNC, 插头, 直型转接器, 50 ohm
艾睿:
The sma-bnc adapter 4289 RF connector from Pomona will make sure your RF components are shielded properly when connected. This connector&s;s body is plated in gold. It has a straight body orientation. It has an operating frequency of 0 to 12.4G Hz. This rf connector has an operating temperature of -65 to 165 °C. This product is 31.75 mm long with a diameter of 14.4 mm.
Allied Electronics:
Adapter; SMA Female to BNC Male; TeflonPer L-P-403; 0.57 in.; Gold-Plated
Chip1Stop:
Conn SMA-BNC Adapter RCP/PL 0Hz to 12.4GHz 50Ohm ST Gold
Verical:
Conn SMA-BNC Adapter RCP/PL 0Hz to 12.4GHz 50Ohm ST Gold
Newark:
# POMONA 4289 RF / Coaxial Adaptor, Inter Series Coaxial, Straight Adapter, SMA, Jack, BNC, Plug
MASTER:
Conn SMA-BNC Adapter RCP/PL 0Hz to 12.4GHz 50Ohm ST Gold
Electro Sonic:
Conn SMA-BNC Adapter RCP/PL 0Hz to 12.4GHz 50Ohm ST Gold
触点电镀 Gold
安装角度 180 °
工作温度Max 165 ℃
工作温度Min -65 ℃
额定电压 335 V
安装方式 Surface Mount
封装 SMA
长度 31.75 mm
封装 SMA
触点材质 Brass
绝缘材质 Teflon
工作温度 -65℃ ~ 165℃
产品生命周期 Active
包装方式 Bulk
制造应用 国防, 国防, 军用与航空, 军用与航空
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694050
