4691-0

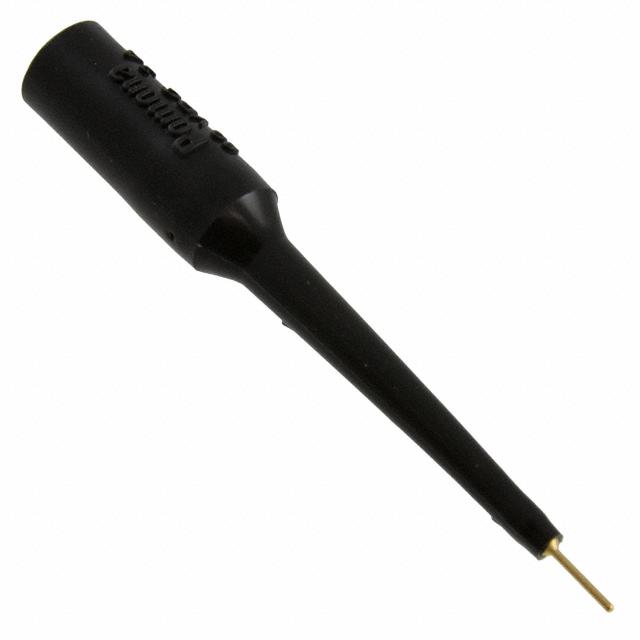

POMONA  4691-0  转接头, 4MM至0.76MM 针型 黑色

适配器 引脚，0.030" 直径 至 香蕉插孔 黑色

得捷:
ADAPT PIN 0.030" TO BAN JACK BLK

贸泽:
测试插头和测试插座 BANANA PLUG TEST

e络盟:
香蕉测试连接器, 4mm, 插头, 5 A, 2.5 kV, 镀金触芯, 黑色

艾睿:
Snap in your circuits wires for quick testing by implementing this banana jack 4691-0 test terminal block from Pomona. This F connector&s;s a single contact that is made out of brass and plated with gold. It has a straight body orientation. It has a female type gender. This connector has a single port. This device has a maximum current rating of 5 A. This product is 69.9 mm long with a diameter of 9.7 mm. 4691-0 is housed in black polyvinyl chloride. This test terminal block has a maximum operating temperature of 55 °C. Its wire is 22 AWG.

Allied Electronics:
Adapter, Test; Banana Jack; 2500 V RMS Max.; Black; degC Max.

TME:

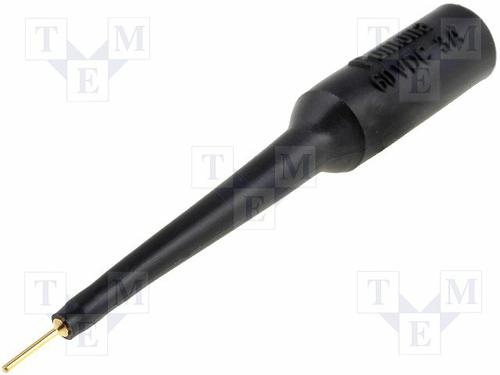

Test probe; 5A; black; Tip diameter:0.76mm; Socket size:4mm

Newark:
# POMONA  4691-0  BANANA JACK TO 22AWG PIN, BLACK

MASTER:
Conn Banana Jack F 1 POS ST Cable Mount 1 Port

Electro Sonic:
Conn Banana Jack F 1 POS ST Cable Mount 1 Port
