4301.5013

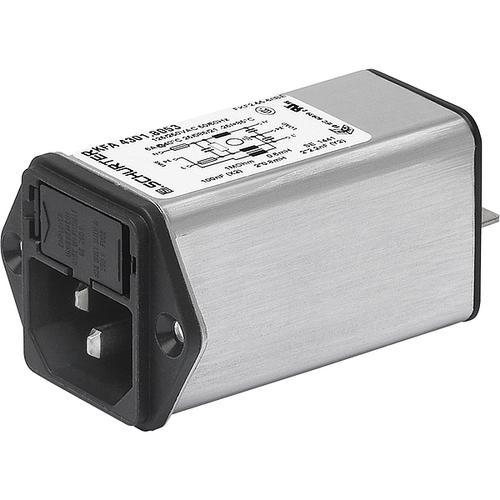

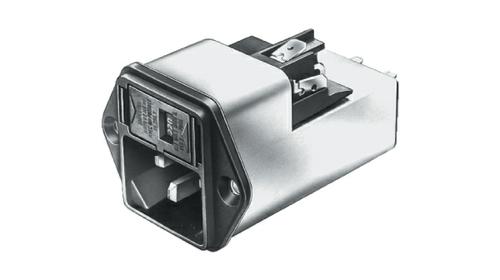

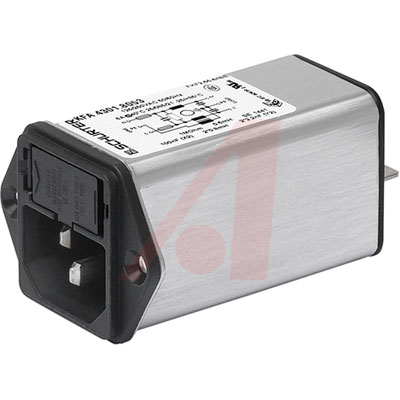

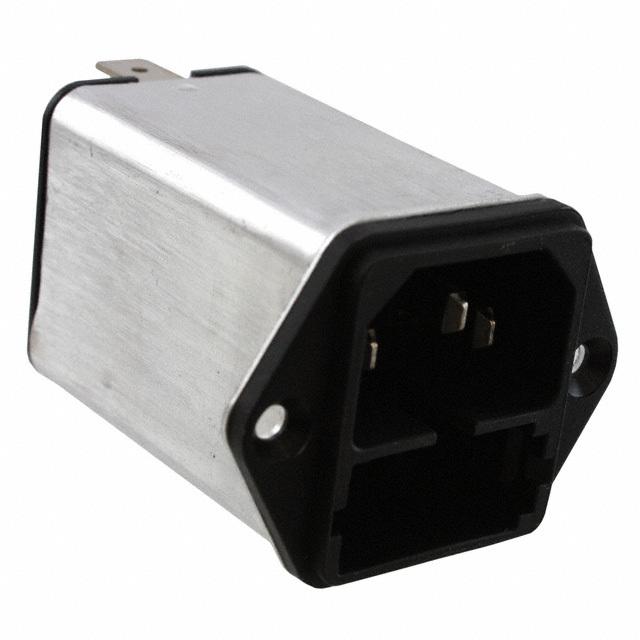

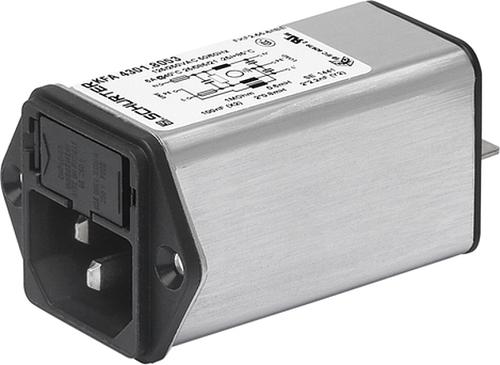

SCHURTER  4301.5013  电源入口滤波器, IEC, C14, KFA, 4A

The KFA series Power Entry Module with line filter. Screw-on version from front or rear side, snap-in version from front side panel mount. Appliance inlet protection class I, fuse holder for fuse-links 5 x 20mm 1- or 2-pole, with or without voltage selector step switch, line filter in standard and medical version functions. Suitable for use in equipment according to IEC/UL 60950. Ideal for assembly in metal plated plastic housings.

.

Quick connect terminals or wires

.

Rear side mounting for efficient cost-saving assembly

.

All single elements are already wired

.

Plug removal necessary for fuse-link replacement

.

Fuse drawer Fingergrip can be removed by hand

.

For added safety extra-safe fuse drawers are available

.

Fuse holder is accessible from the equipment front
