4810BCS

4810BCS图片1
4810BCS图片2
4810BCS图片3
4810BCS图片4
4810BCS图片5
4810BCS概述

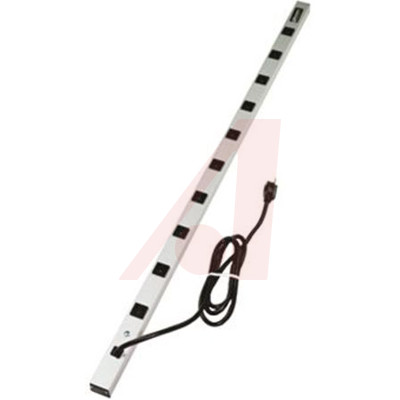

WIREMOLD 4810BCS Surge Protector, Computer Grade, 10Outlets, NEMA 5-15R, 15A, 120V, NEMA 5-15P, 1.8m

Low profile housing is ideal for those tight places where power is needed the most: cabinets, racks and enclosures. The 15 amp and 20 amp CabinetMATE® power strips mount to the cross places on cabinet frames. Just screw the mounting clips into the rail support and snap the unit into place.

**Features:**

* 120 VAC Unit Rating

* Resettable Circuit Breaker

* 20 A Units Have 12/3 SJT Power Cords with 20 A Plugs

* 15 A Units Have 14/3 SJT Power Cords with 15 A Plugs

* Aluminum Housing with Gray Finish

* Two-Year Warranty on Power Strips

* Five-Year Warranty on Surge Units

* Units Available with Straight Blade or NEMA L5-20P Locking Plug

4810BCS中文资料参数规格
技术参数

额定电流 15 A

输出电流 15.0 A

喷头数量 10

额定电压 330 VAC

电源电压AC 120 V

外形尺寸

长度 1.83 m

电缆长度 1.8 m

电源线长度 6 ft

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

在线购买4810BCS
型号: 4810BCS
制造商: Wiremold
描述:WIREMOLD 4810BCS Surge Protector, Computer Grade, 10Outlets, NEMA 5-15R, 15A, 120V, NEMA 5-15P, 1.8m
