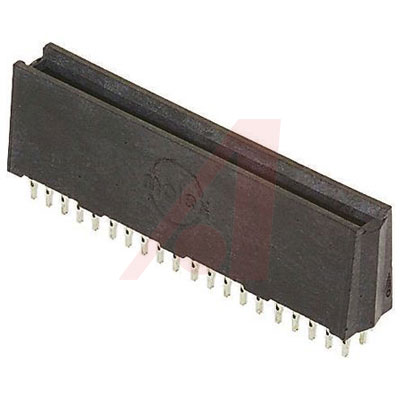

45714-0003

POWER EDGE ™电源连接器 Power Edge™ Power Connector

EXTreme LPHPower™ Connectors

High-current, low-profile EXTreme LPHPower™ connector extends mounting flexibility to backplane or midplane mating applications. The EXTreme LPHPower™ Connector is a mixed, high-current power and signal connector system that picks up where traditional connectors leave off. Designed with power blades parallel to the PC board, its extremely low-profile height of only 7.50mm allows greater system airflow while taking up 53% less space than traditional connectors with the same current rating.

Designed as a new generation of power interconnect, "s EXTreme LPHPower connector provides up to 127.0A per linear inch of space, has two isolated power blades in each housing bay and can be mated in a right-angle, co-planar or vertical orientation. EXTreme LPHPower can be mated in a traditional two-piece connector system, or as a one-piece receptacle-to-cardedge / bus-bar application.
