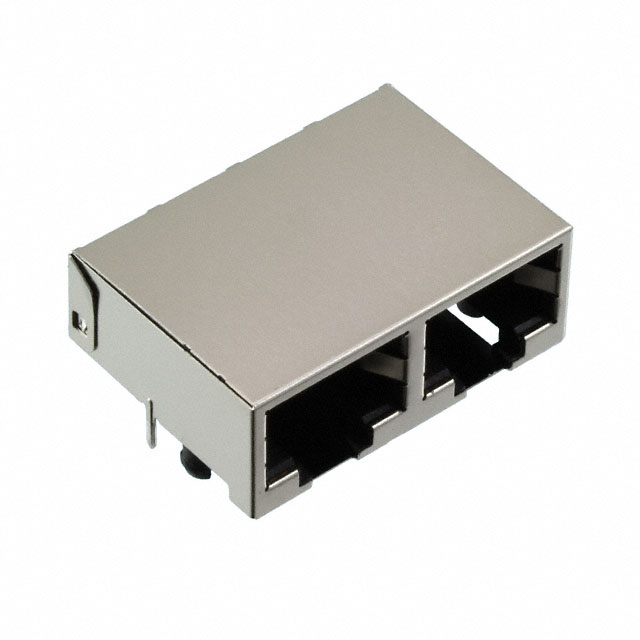

直角紧凑简介单和成组 Right Angle Compact Profile Single and Ganged
Modular Jacks and Plugs. Providing versatile solutions to meet increasing demand for information flow with greater bandwidth requirements, "s broad range of Modular Jacks and Plugs offer exceptional performance for voice, data and high-speed networking applications in addition to consumer, medical, and industrial applications. Additionally, Molex offers jacks with integrated magnetics that support Power-over-Ethernet PoE and specialized, sealed jacks and plugs for harsh environments.
触点数 16
极性 Female
触点电镀 Gold
额定电流 1.50 A
无卤素状态 Not Low Halogen
方向 Right Angle
拔插次数 500
额定电流Max 1.5A/触头
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 150 V
安装方式 Through Hole
长度 29.44 mm
宽度 20.78 mm
高度 12.55 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
