绕线电阻 10kΩ ±5% 3W
10 kOhms ±5% 3W 轴向 通孔器 - 绕线
立创商城:
绕线电阻 10kΩ ±5% 3W
得捷:
RES 10K OHM 5% 3W AXIAL
贸泽:
Wirewound Resistors - Through Hole 3watt 10K 5% Axial
艾睿:
Res Wirewound 10K Ohm 5% 3W ±20ppm/°C Conformal Silicone Ceramic AXL
Allied Electronics:
Resistor; Wirewound; Res 10 Kilohms; Pwr-Rtg 3 W; Tol 5%; Axial; Silicone-Ceramic
Chip1Stop:
Res Wirewound 10K Ohm 5% 3W 20ppm/ C Conformal Silicone Ceramic AXL
Verical:
Res Wirewound 10K Ohm 5% 3W ±20ppm/C Conformal Silicone Ceramic AXL
Newark:
# OHMITE 43J10KE 3W 10K OHMS SILICONE 5%
MASTER:
Res Wirewound 10K Ohm 5% 3W ±20ppm/°C Conformal Silicone Ceramic AXL
Online Components:
Res Wirewound 10K Ohm 5% 3W ±20ppm/°C Conformal Silicone Ceramic AXL
Electro Sonic:
Res Wirewound 10K Ohm 5% 3W ±20ppm/°C Conformal Silicone Ceramic AXL
额定电压DC 200 V
容差 ±5 %
额定功率 3 W
产品系列 40
电阻 10 KΩ
阻值偏差 ±5 %
额定电压 200 V
安装方式 Through Hole
引脚数 2
封装 Silicone-Ceramic

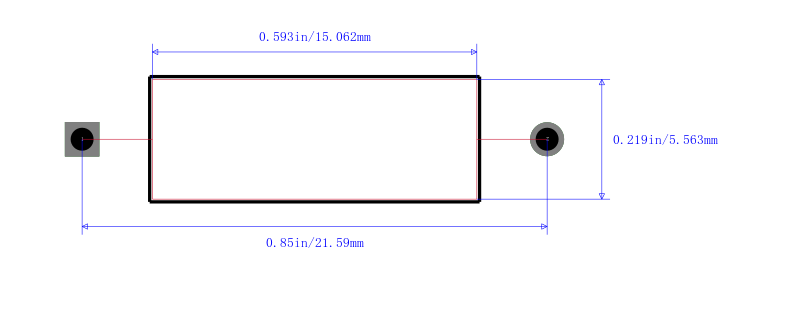

长度 15.1 mm
直径 5.54 mm
脚长度 38.1 mm
封装 Silicone-Ceramic
工作温度 25℃ ~ 275℃
温度系数 ±20 ppm/℃
产品生命周期 Active
包装方式 Bulk
最小包装 1000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210080
