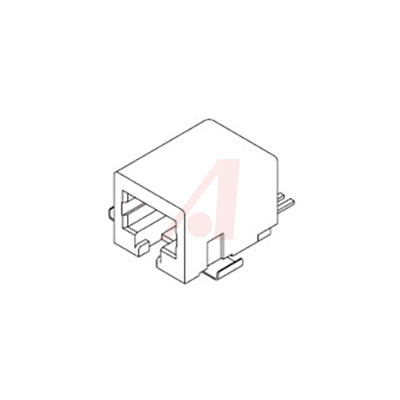

模块化插座，直角，低调， SMT ， 6/6 Modular Jack, Right Angle, Low Profile, SMT, 6/6
Modular Jacks and Plugs
Providing versatile solutions to meet increasing demand for information flow with greater bandwidth requirements, "s broad range of Modular Jacks and Plugs offer exceptional performance for voice, data and high-speed networking applications in addition to consumer, medical, and industrial applications. Additionally, Molex offers jacks with integrated magnetics that support Power-over-Ethernet PoE and specialized, sealed jacks and plugs for harsh environments.
触点数 6
极性 Male
触点电镀 Gold
额定电压DC 125 V
额定电流 5.00 A
排数 1
灼热丝测试标准 Compliant
无卤素状态 Not Low Halogen
方向 Right Angle
电路数 12
针脚数 6
拔插次数 500
屏蔽 No
额定电流Max 1.5A/触头
工作温度Max 80 ℃
工作温度Min -40 ℃
额定电压Max 125 V
接触电阻Max 10 mΩ
安装方式 Surface Mount
长度 18.21 mm
宽度 16.89 mm
高度 11.74 mm
接插高度 17.3 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 80℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
