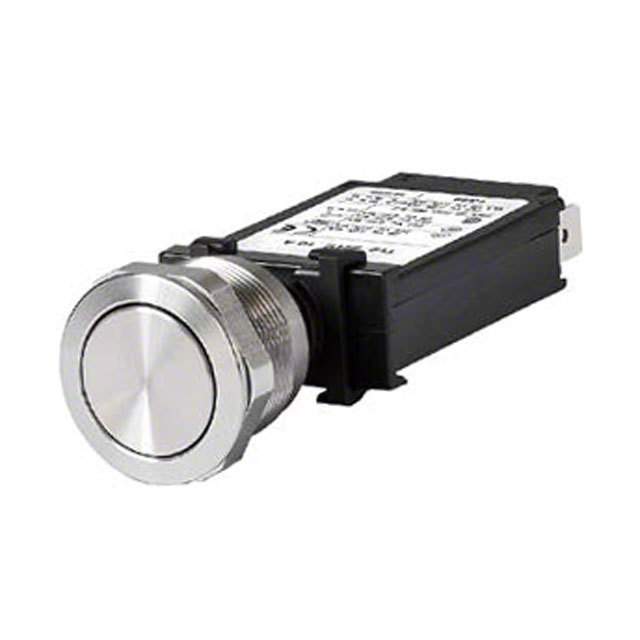

SCHURTER 4410.9012 Thermal Circuit Breaker, T12-MSM Series, 240VAC, 28VDC, 16A, 1Pole, Panel
The T12-MSM series Circuit Breaker for equipment thermal with metal actuator. SCHURTER combines its circuit breaker with thermal operation. The T12-MSM creates a market innovation that marries over-current protection with an attractive pushbutton design. The MSM switches are characterized by their visual appeal and operating characteristics. Both the housing and the actuator are fabricated from high-quality stainless steel and there are a variety of design options including size, colour, lighting and inscription. The T12 is reliable circuit breaker with positive trip-free operation. The contacts open even if the reset button is manually held in the closed position. They reliably protect equipment with rated currents from 50mA to 16A. The optional magnetic release, protects against increased risk of short circuits. The combination of the T12 circuit breaker and the MSM switch now unites all these features in a product that is also extremely robust.
- .

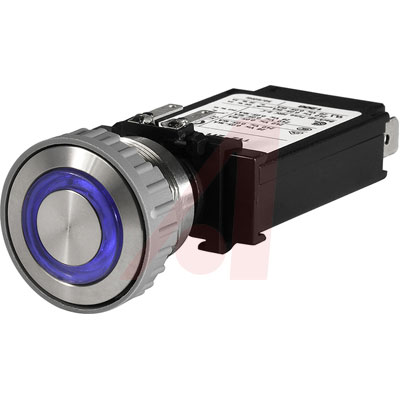

- Metal switch non-illuminated and illuminated
- .
- Quick connect terminals 6.3 x 0.8mm or screw terminals
