4055

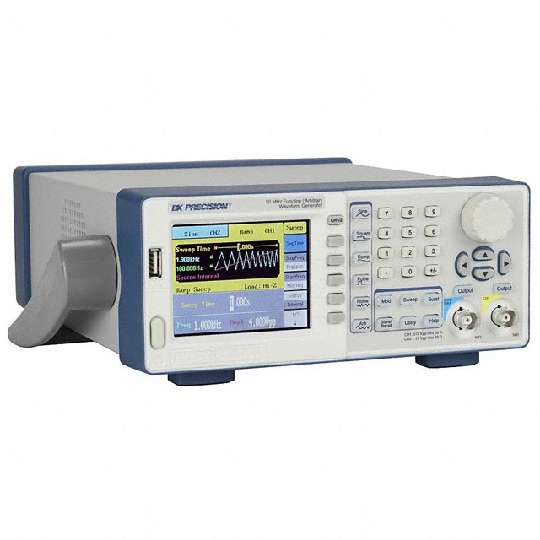

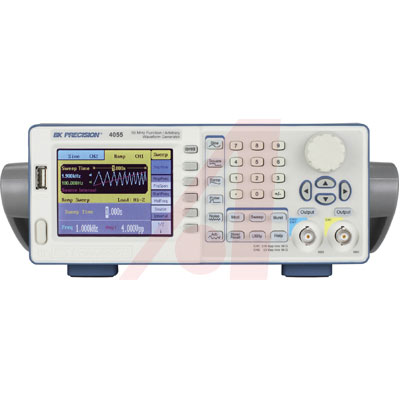

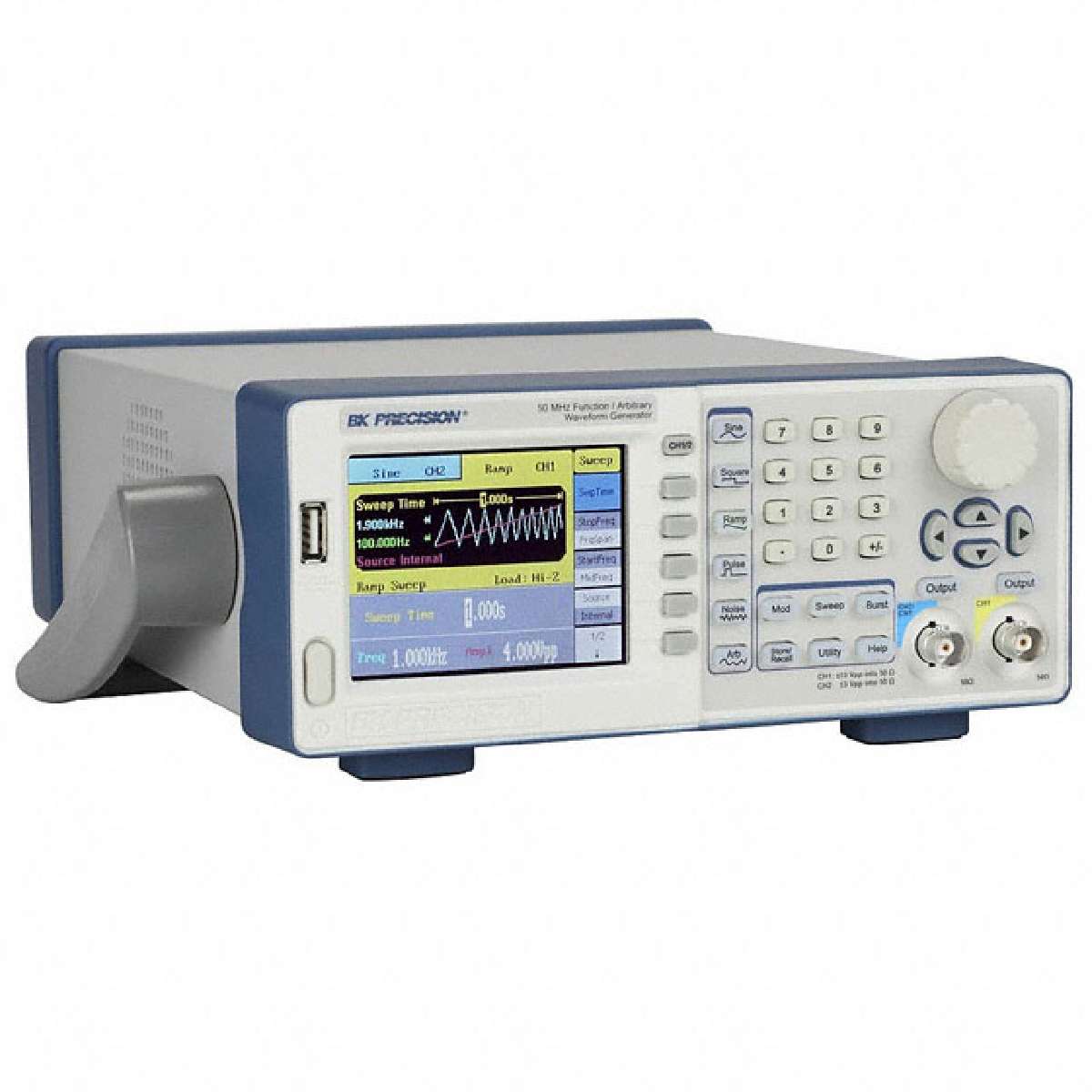

B&K PRECISION 4055 Function Generator, Arbitrary / Pulse, 2Channel, 50MHz, 4050 Series

The 4050 Series Dual Channel Function/Arbitrary Waveform Generators are capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. With easy-to-read color displays and an intuitive user interface with numeric keypad, these instruments offer plenty of features including linear/logarithmic sweep, built-in counter, extensive modulation and triggering capabilities, a continuously variable DC offset, and a high performance 14-bit, 125 MSa/s arbitrary waveform generator. The main output voltage can be varied from 0 to 10 VP-P into 50 Ω up to 20 VP-P into open circuit and the secondary output can be varied from 0 to 3 VP-P into 50 Ω up to 6 VP-P into open circuit.

**Features:**

* 14-Bit, 125 MSa/s, 16k Point Arbitrary Waveform Generator

* Large 3.5" LCD Color Display with Waveform Preview

* Linear and Logarithmic Sweep

* AM/DSB-AM/ASK/FM/FSK/PM/PWM Modulation Functions

* Variable DC Offset

* Adjustable Duty Cycle

* Two Independent Channels with Individual Output On/Off Buttons

* Internal/External Triggering

* Gate and Burst Mode

* 48 Built-In Predefined Arbitrary Waveforms

* Store/Recall Up to 10 Instrument Settings and 10 Arbitrary Waveforms

* Built-In Counter

* USB Device Interface with Front Panel USB Host Port

* GPIB Connectivity with Optional USB-to-GPIB Adapter Model AK40G

* SCPI-Compliant Command Set

* Short Circuit Protection on Outputs
