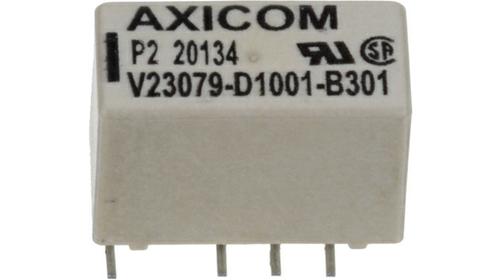

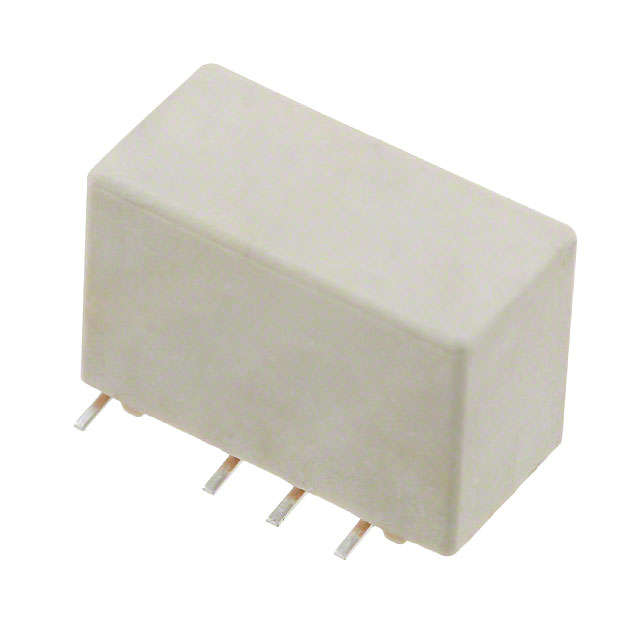

Electromechanical Relay 4.5VDC 145Ω 2A DPDT 14.6mm 9.4mm 9.9mm SMD Signal Relay Automotive Medical
* Standard telecom relay ringing and test access * Slim line 15x7.5mm .590x.295” * Max. switching current 5A * 2 form C bifurcated contacts 2 changeover contacts, 2 CO * Immersion cleanable * High sensitivity for low power consumption 140mW/ 70mW * Single coil version with surge voltage resistance between contact and coil: 2.5kV 2/10μs meets the Telcordia Requirement GR-1089, 1.5kV 10/160μs meets FCC Part 68
艾睿:
Signal Relay 4.5VDC 2A DPDT14.6x9.4x9.9mm SMD Automotive Medical
安富利:
Electromechanical Relay DPDT 2A 4.5VDC 145Ohm Surface Mount
Verical:
Electromechanical Relay 4.5VDC 145Ohm 2A DPDT 14.6mm 9.4mm 9.9mm SMD Signal Relay Automotive Medical
MASTER:
V23079D2011B301
Powell:
3G COM Relay P2
Electro Sonic:
V23079D2011B301
触点电镀 Gold
绝缘电阻 >1000 MΩ
输入电压DC 4.50 V
触点类型 DPDT
功耗 140 mW
触点额定电流 2.00 A
线圈电压 4.50 V
线圈电流 31.03 mA
线圈功率DC 140 mW
线圈电阻 145 Ω
额定电流Max 2 A
线圈电压DC 4.5 V
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
接触电阻Max <50 mΩ
安装方式 PCB
封装 DIP
高度 9.9 mm
封装 DIP
触点材质 Silver Nickel, Gold
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
