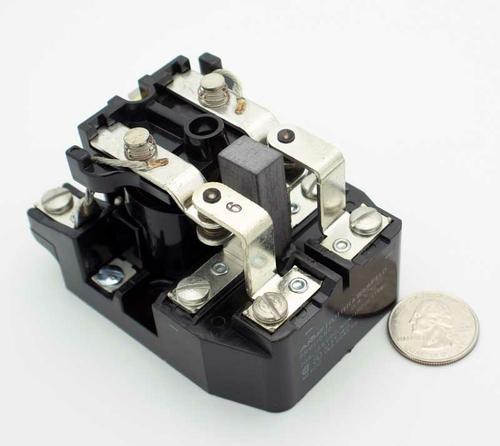

PRD 系列 20 A 双刀双掷 24 VDC 大功率 通用 功率继电器
Electromechanical Relay 24VDC 288Ohm 20A DPDT 85.73x63.8x63.5mm Power Relay
Product Highlights
Relay Type = Heavy Duty, Power
Relay Style = Power
PRD Series
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 20 Amps.
得捷:
PRD-11DH0-24=PRD
艾睿:
Power Relay 24VDC 20A DPDT85.73x63.8x63.5mm
富昌:
PRD Series 20 A DPDT 24 VDC Heavy Duty General Purpose Power Relay
Verical:
Electromechanical Relay 24VDC 288Ohm 20A DPDT 85.73x63.8x63.5mm Power Relay
MASTER:
Electromechanical Relay 24VDC 288Ohm 20A DPDT 85.73x63.8x63.5mm Power Relay
Powell:
EMG Contactors and Solenoids
Electro Sonic:
Electromechanical Relay 24VDC 288Ohm 20A DPDT 85.73x63.8x63.5mm Power Relay
额定电压DC 125 V
额定电流 20.0 A
绝缘电阻 100 MΩ
额定功率 2.00 W
输入电压DC 24.0 V
触点类型 DPDT
电阻 288 Ω
功耗 2.00 W
触点额定电流 20 A
线圈电压 24.0V, 24.0Vmax
线圈电流 84 mA
线圈功率DC 2.00 W
线圈电阻 288 Ω
载流 20.0 A
额定电流Max 20 A
线圈电压DC 24 V
开关电流Max 20 A
工作温度Max 80 ℃
工作温度Min -55 ℃
接触电阻Max 75 mΩ
安装方式 PCB, Screw
长度 85.8 mm
宽度 63.8 mm
高度 63.5 mm
触点材质 Silver
工作温度 -55℃ ~ 80℃
产品生命周期 Active
包装方式 Tray, Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
