DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard

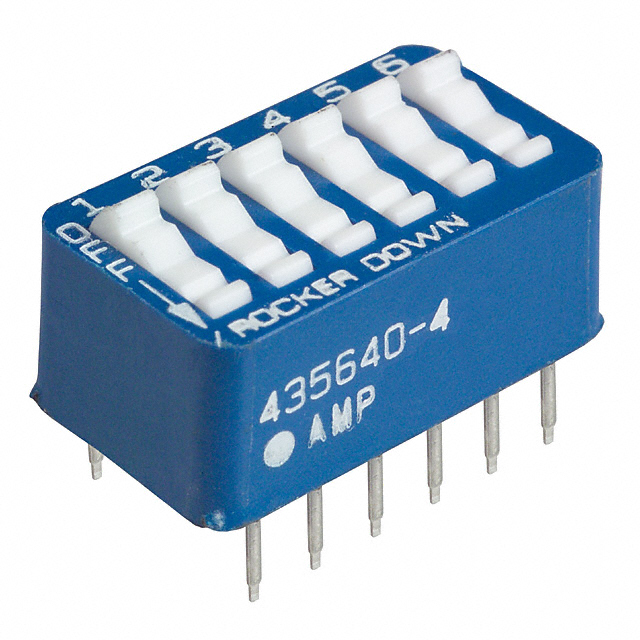

Easily customize your printed circuit with the use of the dual in-line package switch, designed from . This device has a maximum current rating of 0.06 A @ 5VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -55 °C to 105 °C. The 435640-4 DIP switch has a PC pin termination style. This product"s terminal pitch is 2.54 mm. This product is 17.27 mm long, 8.64 mm tall and 9.65 mm deep. The maximum DC voltage rating is 24 VDC.
触点电镀 Gold, Gold over Nickel
额定电压DC 24 V
接触器类型 Rocker
额定电流 60 mA
方向 Vertical
触点类型 SPST
易燃性等级 UL 94 V-0
针脚数 6
额定电流Max 0.06A @5VDC
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 5 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 17.27 mm
宽度 9.65 mm
高度 8.64 mm
引脚间距 2.54 mm
外壳颜色 Blue
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536509065
