旋钮开关 SW ASSY 3100 10 POS BCD COMP.

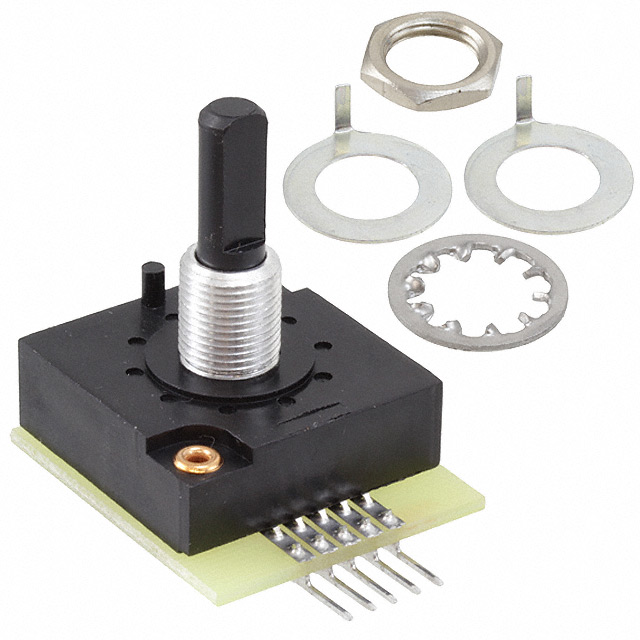

This rotary switch from gives you the ability to have more than two positions for your switch. This device has a maximum current rating of 0.125 A @ 115VAC. It has a SP10T configuration. This rotary limit switch has an operating temperature range of -18 °C to 88 °C. The 436022-1 rotary limit switch has a PC pin termination style. The maximum AC voltage rating is 115 VAC. This product is 30.48 mm long and 38.74 mm.
触点电镀 Gold, Gold over Nickel
针脚数 10
额定电流Max 0.125 A
工作温度Max 88 ℃
工作温度Min -18 ℃
额定电压AC Max 115 V
接触电阻Max 150 mΩ
安装方式 Through Hole
长度 30.48 mm
宽度 34.28 mm
触点材质 Phosphor Bronze
工作温度 -18℃ ~ 88℃
外壳材质 Polyester
产品生命周期 Obsolete
包装方式 Bag
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536509065
