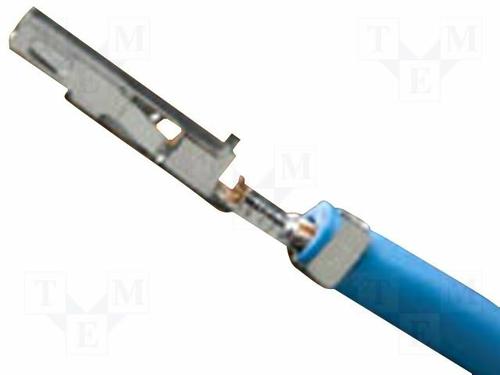

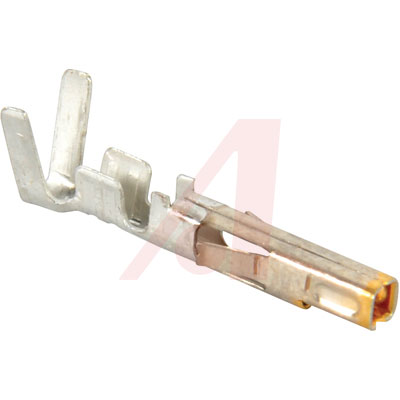

触芯, Mini-Fit Plus 45750 Series, 母, 压接, 18 AWG, 镀金触芯
Mini-Fit® Plus Connector System
Delivering up to 13.0A, the Mini-Fit® Plus 4.20mm pitch connector system increases power delivery for high-current applications in virtually any industry without increasing design footprints. The Mini-Fit® Plus system offers a high-current, power-dense, mid-range power connection system. The Mini-Fit Plus system leverages the same housings, PCB footprint and application tooling as Mini-Fit Jr.™ and Mini-Fit BMI systems.
With the launch of the Mini-Fit Plus high-conductive terminal, customers can increase power carrying capabilities while leveraging the extensive Mini-Fit Jr.™ product portfolio.
The Mini-Fit Plus system consists of crimp terminals, headers and PCB receptacles; 13.0A per circuit can be achieved using 16 AWG wire. Mini-Fit Plus terminals can be used with all existing Mini-Fit plug and receptacle housings. In addition, all standard Mini-Fit right-angle headers are inherently Mini-Fit Plus compatible, as they feature a solid-pin construction which is designed to handle high current.
