4-640440-4

AMP FROM TE CONNECTIVITY  4-640440-4  绝缘压穿 IDC 连接器

14 位置矩形连 插座 IDC 锡 22 AWG

得捷:
CONN RCPT 14POS IDC 22AWG TIN

e络盟:
绝缘压穿 IDC 连接器

艾睿:

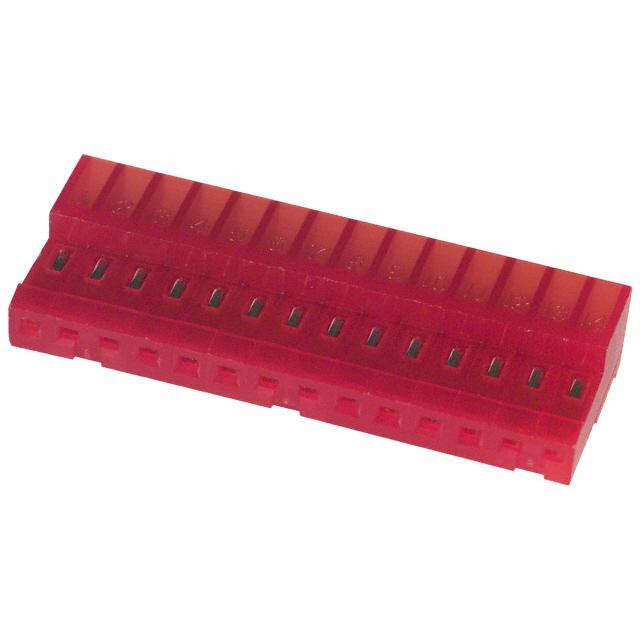

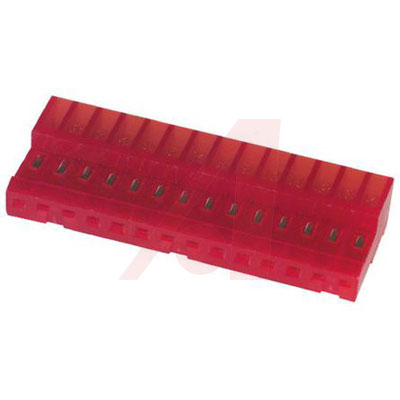

As an added safety precaution, the idc connector 4-640440-4 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This F connector&s;s 14 contacts that are made out of copper alloy and plated with tin over nickel. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. Its pitch is 2.54 mm. It has a female type gender. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. It uses the idt termination method. This product is 35.56 mm long, 6.99 mm tall and 13.21 mm deep. 4-640440-4 is housed in red nylon. This connector has an operating temperature of -55 to 105 °C.

Allied Electronics:
MTA-100 Series, Cable Mount IDC Connector Socket, 14 Way, 1 Row, 2.54mm Pitch

Jameco:
Connector IDC Connector Female 14 Position 2.54mm IDT Right Angle Cable Mount Loose Piece

安富利:
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece

Verical:
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Bag/Box

Newark:
# AMP - TE CONNECTIVITY  4-640440-4  Wire-To-Board Connector, 2.54 mm, 14 Contacts, Receptacle, MTA-100 Series, IDC / IDT, 1 Rows

MASTER:
MTA 100 CONNECTOR ASSEMBLY, 22 AWG, STANDARD

Online Components:
14P MTA100 CONN ASSY 22AWG RED

Electro Sonic:
14P MTA100 CONN ASSY 22AWG RED
