4AC55

互动式目录替换目录页 Interactive Catalog Replaces Catalog Pages

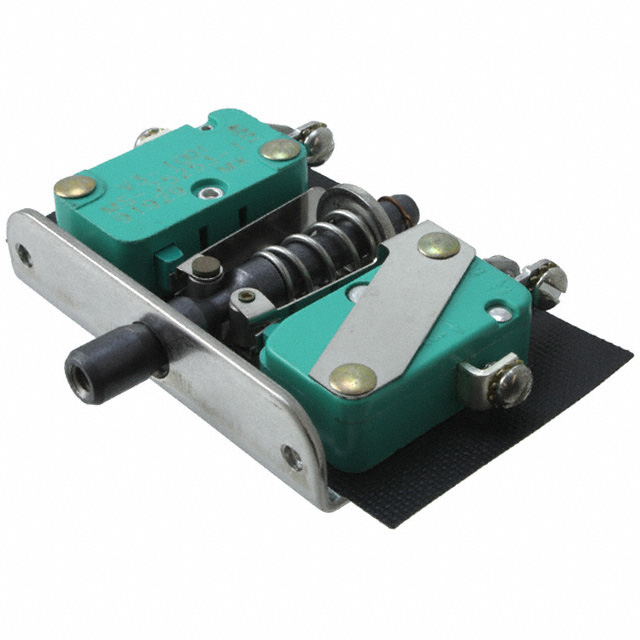

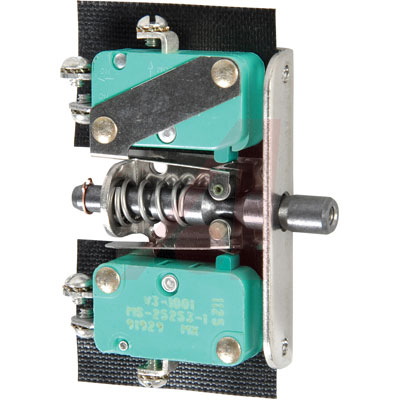

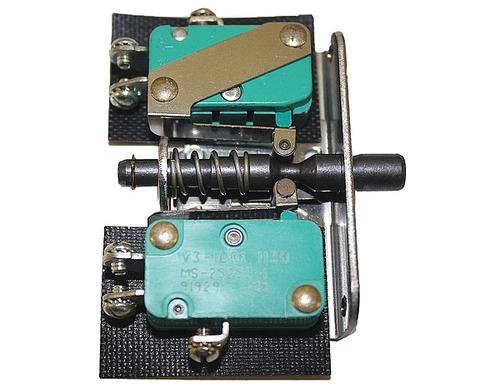

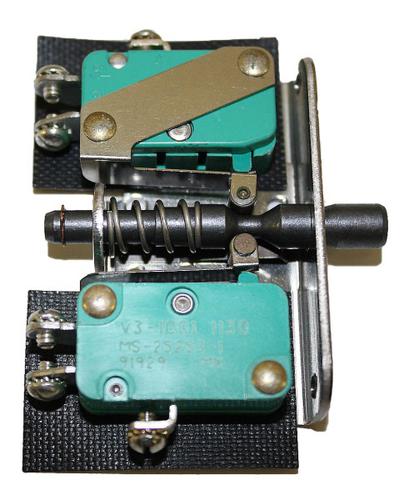

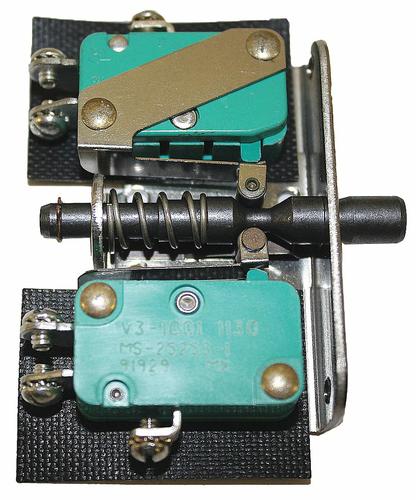

AC Series Door Switch, Single Pole Double Throw Double Break Circuitry, 5 A at 250 Vac, Steel Rod Actuator, Screw Termination, Military Part Number MS16106-5

贸泽:
Basic / Snap Action Switches 5 A @ 250 VAC Steel Rod Actuator

e络盟:
门开关

艾睿:
Implement safety measures in your device by monitoring the position of the guard with this door interlock 4AC55 safety interlock switch from Honeywell. This device has a maximum current rating of 15 A @ 250VAC. It has a DPDT configuration. 4AC55 is housed in stainless steel. This safety interlock has a minimum operating temperature of -55 °C and a maximum of 85 °C. The 4AC55 safety interlock has a screw termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 250 VDC.

Allied Electronics:
AC Series Switch, Basic, SPDT, Screw Mounting, ON-OFF, Plunger, Mil No# MS16106-5

Verical:
Switch Safety Interlock N.O./N.C. DPDT Rod 15A 250VAC 250VDC 248.57VA Screw Mount Screw

Newark:
# HONEYWELL  4AC55  Safety Interlock Switch, SPDT, Screw, 250 V, 15 A

MASTER:
MICRO SWITCH™ Basic Switches: AC Series, Door Switch, Single Pole Double Throw SPDT, 5 A at 250 Vac, Steel Rod Actuator, Screw Termination

Online Components:
MICRO SWITCH™ Subminiature Basic Switches: SX Series, Single Pole Double Throw SPDT, 1 A at 125 Vac, Gold-Plated Contacts, Pin ...

Electro Sonic:
MICRO SWITCH™ Basic Switches: AC Series, Door Switch, Single Pole Double Throw SPDT, 5 A at 250 Vac, Steel Rod ...
