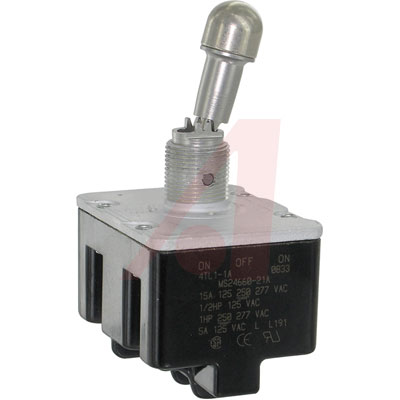

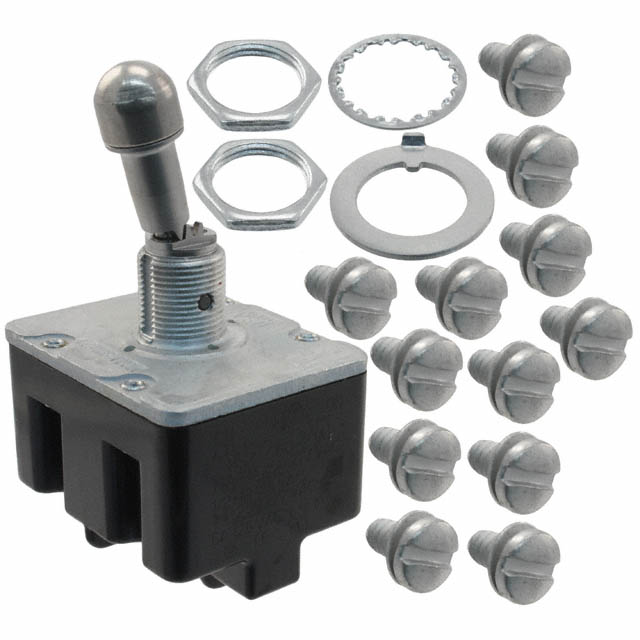

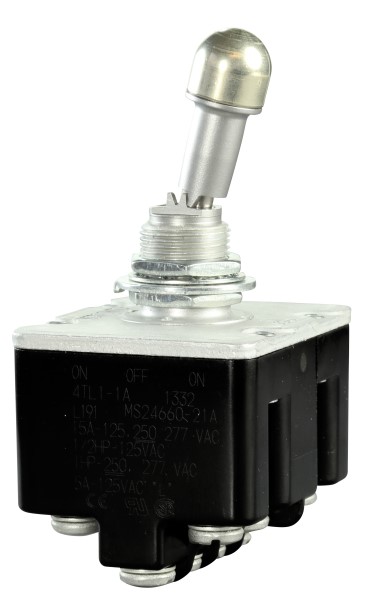

Switch Toggle ON OFF ON 4PDT Locking Lever Screw 20A 277VAC 250VDC 745.7VA Panel Mount with Threads
"s low-energy TL Series toggle switches were introduced to give designers the option of gold-plated contacts for switching “non-arching” loads. A range of circuitry, sealing levels and sizes provide even more options to maximize flexibility and enhance performance. This popular product line is UL recognized, CSA certified and CE approved as well as customer lauded.
TL toggle switches from Honeywell feature:
* Silver and/or gold-plated contacts for increased application flexibility
* High strength for durability in tough conditions
* Temperature resistant materials to enhance performance in challenging environments
* Non-tracking case material
* Quality at a competitive price
额定电压DC 250 V
额定电压AC 277 V
额定电流 15 A
触点类型 4PDT
额定电流Max 20A @28VDC
工作温度Max 72 ℃
工作温度Min -65 ℃
额定电压 125 VAC
额定电压DC Max 250 V
额定电压AC Max 277 V
安装方式 Panel, Screw-In
高度 75.18 mm
触点材质 Silver Cadmium Oxide
工作温度 -65℃ ~ 72℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
ECCN代码 EAR99
HTS代码 8536509065
