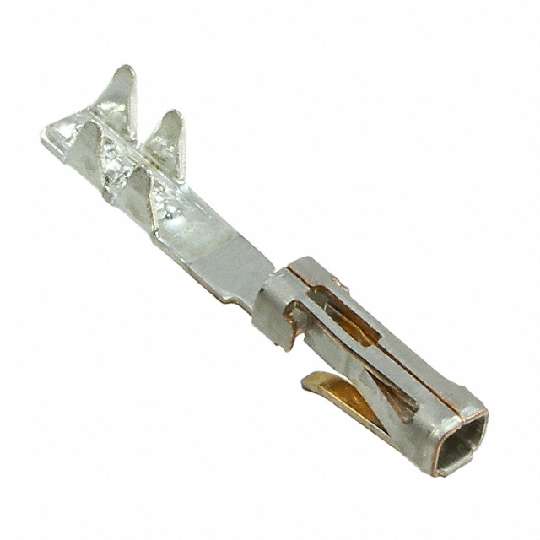

AMP FROM TE CONNECTIVITY 487117-4 金属触芯, 母, IDC / IDT
This connector contact from is designed to perform within the rated voltage and current specifications to provide a solid connection. It has a straight body orientation. It has a socket type gender. This has a Connector FFC-FPC connector. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 12.01 mm long, 1.82 mm tall and 1.87 mm deep. It uses the idt termination method. This connector contact has a minimum operating temperature of -40 °C and a maximum of 120 °C.
触点数 1
极性 Female
触点电镀 Gold, Tin Lead
额定电流 2 A
接触电阻 3 mΩ
额定电流Max 2 A
工作温度Max 120 ℃
工作温度Min -40 ℃
额定电压 300 V
接触电阻Max 3 mΩ
封装 -
长度 12.01 mm
宽度 1.87 mm
高度 1.82 mm
封装 -
颜色 Black
触点材质 Phosphor Bronze
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8538908040
