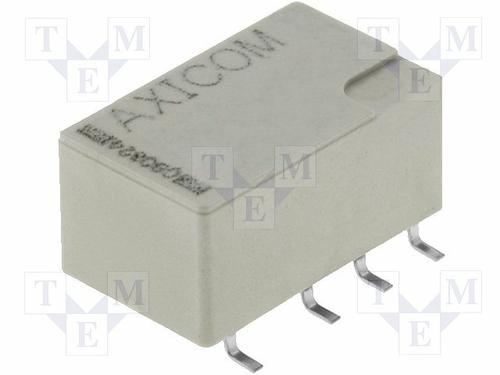

TE CONNECTIVITY / AXICOM 4-1462037-7 信号继电器, IM系列, DPDT, 24 VDC, 2 A, SMD, 非闭锁
The is a 2-pole Signal Relay with DC coil, IM series. 2 form-C 2CO contact configuration. PdRu+Au covered contact, SMT gull-wing terminal. Slim line 10 x 6mm, low profile 5.65mm and minimum board-space 60mm². 2/5A switching current, 60W/62.5VA switching power and 220VDC/250VAC switching voltage. High dielectric and surge capability up to 2500Vrms between open contacts and 2500Vrms between coil and contacts. High mechanical shock resistance up to 50g functional.
- .
- Mono-stable coil
- .
- SMT version
- .
- Standard version
- .
- RT V Environmental protection rating
触点电镀 Gold
额定电压DC 220 V
额定电压AC 250 V
绝缘电阻 >1000 MΩ
输入电压DC 24.0 V
触点类型 DPDT
接触电阻 50 mΩ
功耗 200 mW
触点额定电流 2 A
线圈电压 24 VDC
线圈电流 8.33 mA
线圈功率DC 200 mW
线圈电阻 2.88 kΩ
载流 2.00 A
额定电流Max 2 A
线圈电压DC 24 V
线圈功率 200 mW
额定功率Max 60W, 62.5VA
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
接触电阻Max <50 mΩ
安装方式 Surface Mount
引脚数 8
封装 DIP
长度 10 mm
宽度 7.5 mm
高度 5.65 mm
封装 DIP
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, HVAC, Industrial, 电源管理, Industrial, Power Management, Automation & Process Control, Consumer El, Medical, Consumer Electronics, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410020
